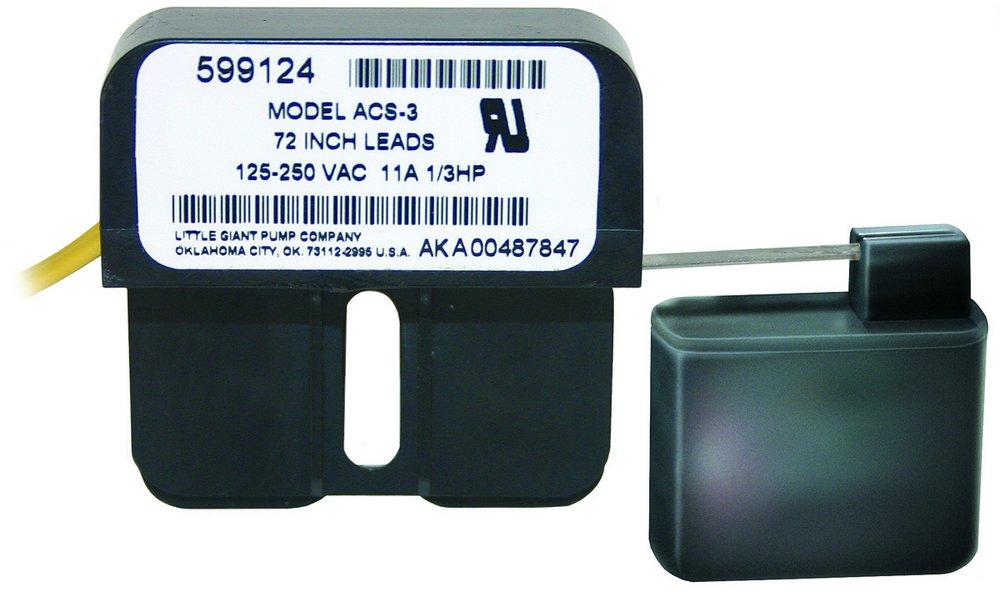

Little Giant 599124 125/250V Condensate Drain Pan Overflow Shut-Off Switch

Product Description

The Little Giant 125/250V condensate drain pan overflow shut-off switch, part number 599124, effectively prevents overflow issues in air conditioning and refrigeration units. This device is critical for protecting equipment from potential water damage by automatically shutting down the unit when the drain pan approaches overflow levels.

• Designed for low-voltage applications
• Compatible with 125V to 250V systems
• Features a polyethylene float for reliable operation

Product Highlights

The Little Giant overflow switch is essential for maintaining safe operation in HVAC systems. It allows for installation of audible and visual alarms, enhancing the overall safety and effectiveness of the cooling units.

Product Information

Standard Information

• Brand: Little Giant
• MPN: 599124

Technical Specifications

• Voltage: 125V - 250V
• Amperage: 11A
• Housing Material: ABS Plastic
• Lead Wire Length: 72 inches
• Float Material: Polyethylene
• Dimensions: 4-9/16 in x 1-3/8 in x 3 in (length x width x height)
• Temperature Rating: Up to 120 °F
• Certifications: UR / C-CSA listed
