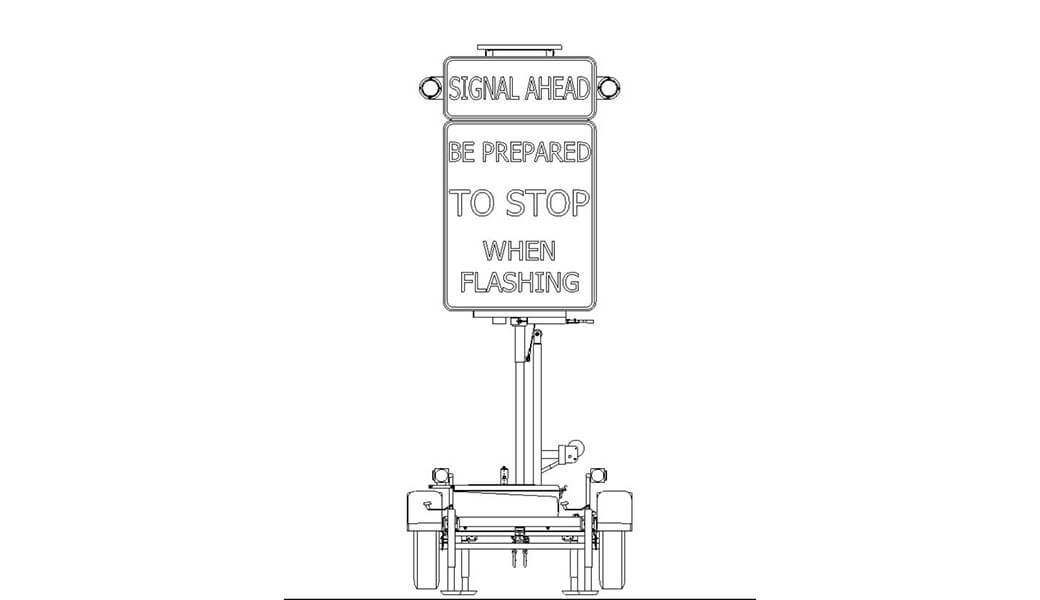

ACR W2312 ACR Trailer-Mounted Traffic Signals Power

Product Description

The ACR W2312 is a trailer-mounted traffic signal for traffic management. It uses a radio communication system for effective traffic control. The signal can be programmed through a V-Touch Controller and can be towed for easy movement. It supports various traffic control patterns to meet different needs.

• Features a V-Touch controller for programming.
• Equipped with a radio communication system.
• Supports multiple traffic control patterns.

Product Highlights

This traffic signal is designed for versatility in traffic control applications.

Product Information

Standard Information

• Brand: ACR
• MPN: W2312

Technical Specifications

• Operating Length: 131.5 inches (3340 mm)
• Operating Width: 70.5 inches (1791 mm)
• Traveling Height: 103.75 inches (2635 mm)
• Operating Height: 178 inches (4521 mm)
• Weight: 1200 lbs (545 kg)
• Axle/Suspension: 2000 lbs (900 kg)
• Traffic Control Pattern Types: Access, Shuttle, Two-way, T-junction, Crossroads
• Customizable: Multi-directional installation supported
