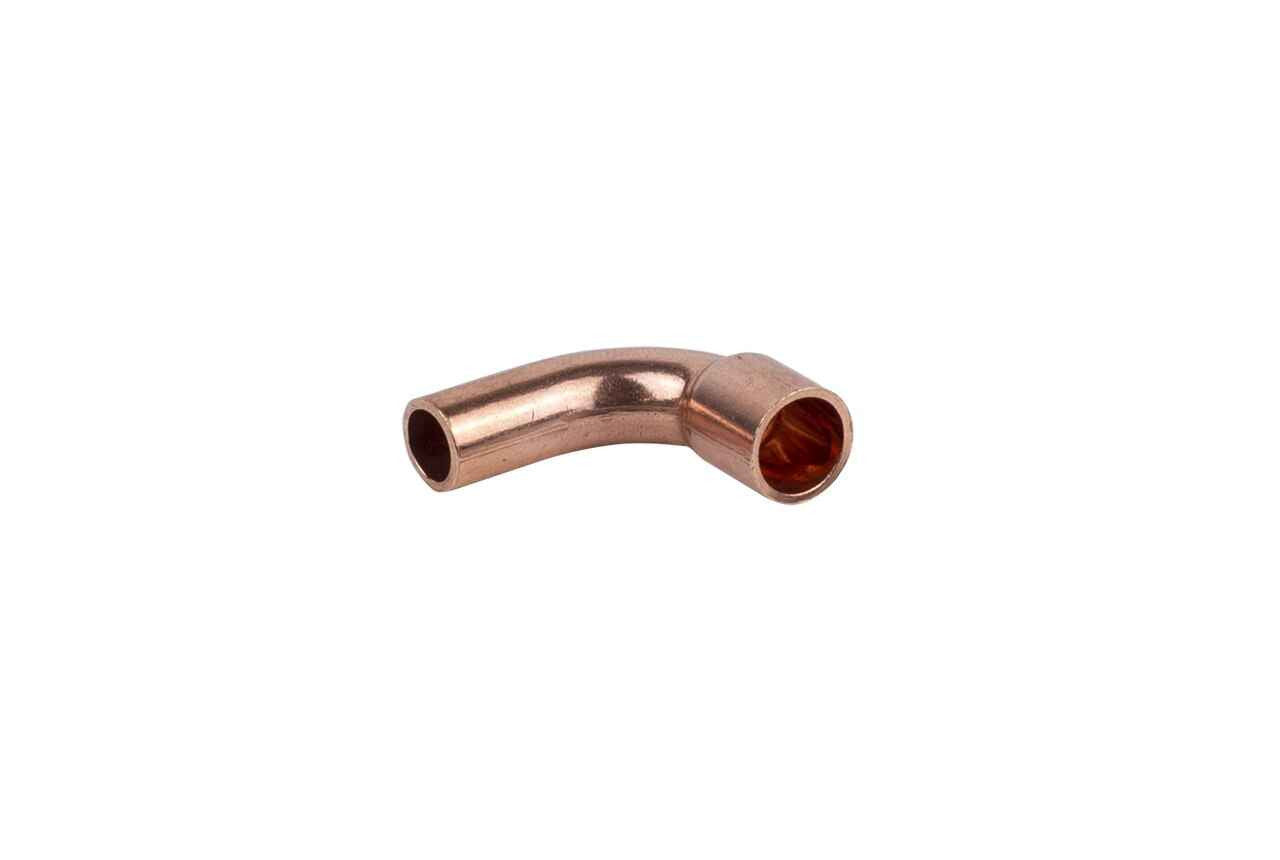

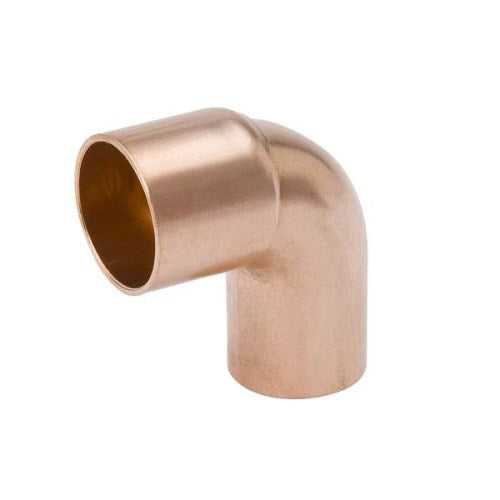

ACR W02305 1/4 Short Radius Street 90 Copper Elbow

Product Description

The ACR W02305 is a 1/4 short radius street elbow designed for HVAC and refrigeration applications. It is constructed from UNS C12200 grade copper. This fitting complies with ASME B16.22 and MSS SP104 standards, ensuring reliability and performance. It is suitable for joining ASTM B280 and ASTM B88 seamless copper tubes. This fitting has been third-party verified by Underwriters Laboratories (UL) for an operating pressure of 700 psi at a temperature of two hundred fifty degrees Fahrenheit.

• Constructed from UNS C12200 grade copper
• Conforms to ASME B16.22 and MSS SP104 standards
• Ideal for refrigeration use

Product Highlights

The ACR W02305 is a mandatory component for efficient HVAC systems and refrigeration setups. It provides a secure connection that withstands high pressures and temperatures.

Product Information

Standard Information

• Fitting Type: 90 Degree Street Elbow - Short Radius
• Fitting Connection Type: FTG X C

Technical Specifications

• Fitting Connection Size: 1/4 inches
