Acorn SW-MW2G250 Metal to Wood Screw Epdm 2 in 250 Ct

Product Description

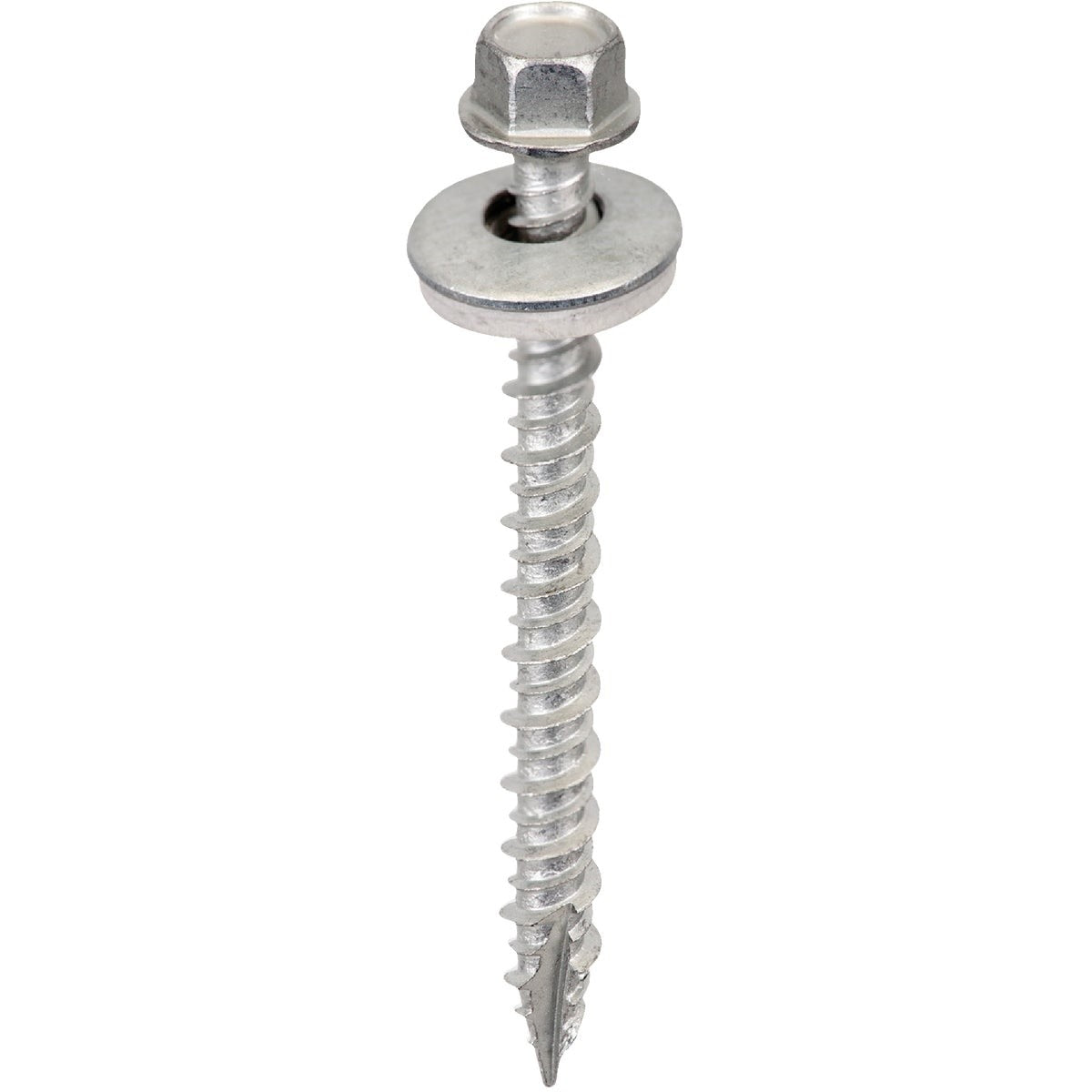

The ACORN SW-MW2G250 is a self-piercing, self-tapping metal-to-wood screw engineered for roofing and siding applications. Manufactured from heat-treated C1022 steel with case hardening, each screw features a 1/4-inch across-flat high-hat hex washer head with an assembled EPDM (Ethylene Propylene Diene Monomer) sealing washer. The EPDM washer conforms to the mating surface on installation, creating a weathertight seal. Twin lead Type 17 point geometry and hi-lo threads reduce drive torque, speed up installation, and improve pull-out resistance. All screws carry a dacro coating rated for 1,000-hour salt spray resistance. Sold in a 250-piece pack weighing 3.269 pounds.

These screws are specified for metal-to-wood fastening in residential and light commercial roofing and siding work. Typical applications include attaching metal roofing panels, corrugated siding, and metal cladding to wood structural members or wood sheathing. The self-piercing point eliminates the need for pre-drilling through light-gauge metal, speeding up field installation. The hex washer head allows driving with a standard hex-head driver bit. The dacro base coating provides corrosion resistance suited to exterior exposure conditions.

Key Features

• Self-piercing, self-tapping design eliminates pre-drilling through light-gauge metal
• Heat-treated C1022 steel construction with case hardening for durability
• 1/4-inch across-flat high-hat hex washer head with assembled EPDM sealing washer
• Twin lead Type 17 point and hi-lo threads for faster drive and greater pull-out resistance
• Dacro coating rated to 1,000-hour salt spray test for exterior corrosion resistance
• Packed 250 pieces per pack

Compatibility

Designed for metal-to-wood fastening in roofing and siding applications where a self-piercing, sealing screw is required at light-gauge metal panel-to-wood substrate connections.

Installation Notes

Installation is performed with a hex-head driver bit sized for a 1/4-inch hex head. Confirm that the substrate and panel gauge fall within the design range for self-piercing fasteners before driving. Do not overdrive — the EPDM washer should compress evenly against the metal surface without distorting. Follow applicable building code and manufacturer panel installation instructions for fastener spacing and edge distance.

Technical Specifications

• Material: Heat-treated C1022 steel, case hardened
• Head Style: High-hat hex washer head
• Across Flats: 1/4 inch
• Washer: Assembled EPDM (Ethylene Propylene Diene Monomer)
• Point Type: Twin lead Type 17
• Thread Style: Hi-lo
• Screw Length: 2 inches
• Coating: Dacro, 1,000-hour salt spray rated
• Quantity per Pack: 250 pieces
• Pack Weight: 3.269 pounds
• UPC: 00810468002221

Standard Information

• Brand: ACORN
• Manufacturer Part Number: SW-MW2G250
