Acorn SW-MM141G250 Framing Screw 14x1 in 250 Ct

Product Description

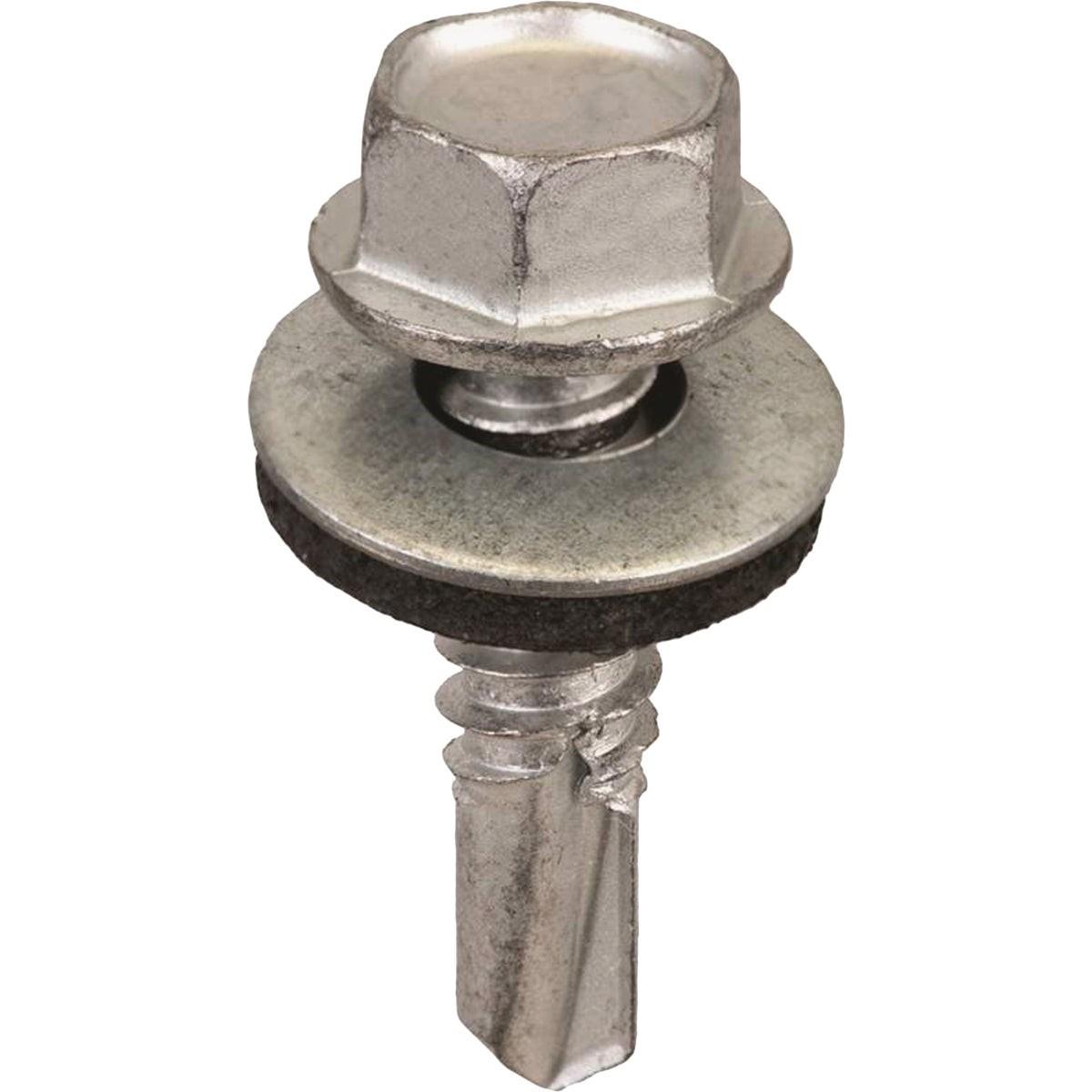

The ACORN SW-MM141G250 is a #14 x 1 inch self-drilling framing screw designed for metal-to-metal fastening in structural and framing applications. It is manufactured from C1022 steel with a hardened body and a Dacro galvanized coating rated for 1,000 hours of corrosion resistance. The head style is an unslotted indented hex washer head with an undercut profile and an EPDM bonded washer that creates a weather-resistant seal at the fastening point. The Type 3 drill point eliminates the need for pre-drilling into light-gauge steel framing members. Licensed contractors, metal building erectors, and commercial framing crews are the primary installers of this fastener.

This screw is suited for light-gauge steel-to-steel connections in residential and commercial metal framing applications. Typical installations include fastening steel track to steel stud, attaching metal panels, and securing light structural steel components where a self-drilling, corrosion-resistant fastener is required. The EPDM bonded washer makes it appropriate for exterior or exposed applications where moisture intrusion at the fastener head is a concern. This pack contains 250 screws, making it a practical field-carry quantity for service and installation work.

Key Features

• Type 3 drill point self-taps into light-gauge steel without pre-drilling
• C1022 hardened steel construction for reliable drive performance
• 1,000-hour Dacro coating provides long-term corrosion protection
• EPDM bonded washer forms a weather-resistant seal at the fastener head
• Unslotted indented hex washer head with undercut profile for positive driver engagement
• 250-count pack quantity suited for production framing and service work

Compatibility

Designed as a metal-to-metal self-drilling fastener for use in light-gauge steel framing systems where a #14 x 1 inch hex washer head screw with a Type 3 point meets the installation requirement.

Installation Notes

Install with a hex-head driver bit sized to the hex washer head; use a variable-speed drill or screw gun to avoid overdriving and compressing the EPDM washer beyond its sealing range. Verify that the base steel gauge is within the rated capacity of a Type 3 drill point before installation. Follow applicable building codes and framing specifications when determining fastener spacing and pattern. Inspect installed screws to confirm the EPDM washer is seated flat against the substrate without being deformed.

Technical Specifications

• Size: 14 x 1 inch
• Material: C1022 Steel, Hardened
• Coating: Dacro Galvanized, 1,000-hour corrosion resistance
• Head Style: Unslotted Indented Hex Washer Head, Undercut
• Washer Type: EPDM Bonded
• Point Type: Type 3 Self-Drilling
• Quantity: 250 per pack
• Pack Weight: 4.491 pounds

Standard Information

• Brand: ACORN
• Manufacturer Part Number: SW-MM141G250
