Acorn SW-MM1212G250 Self-drilling Framing Screw 250 Ct

Product Description

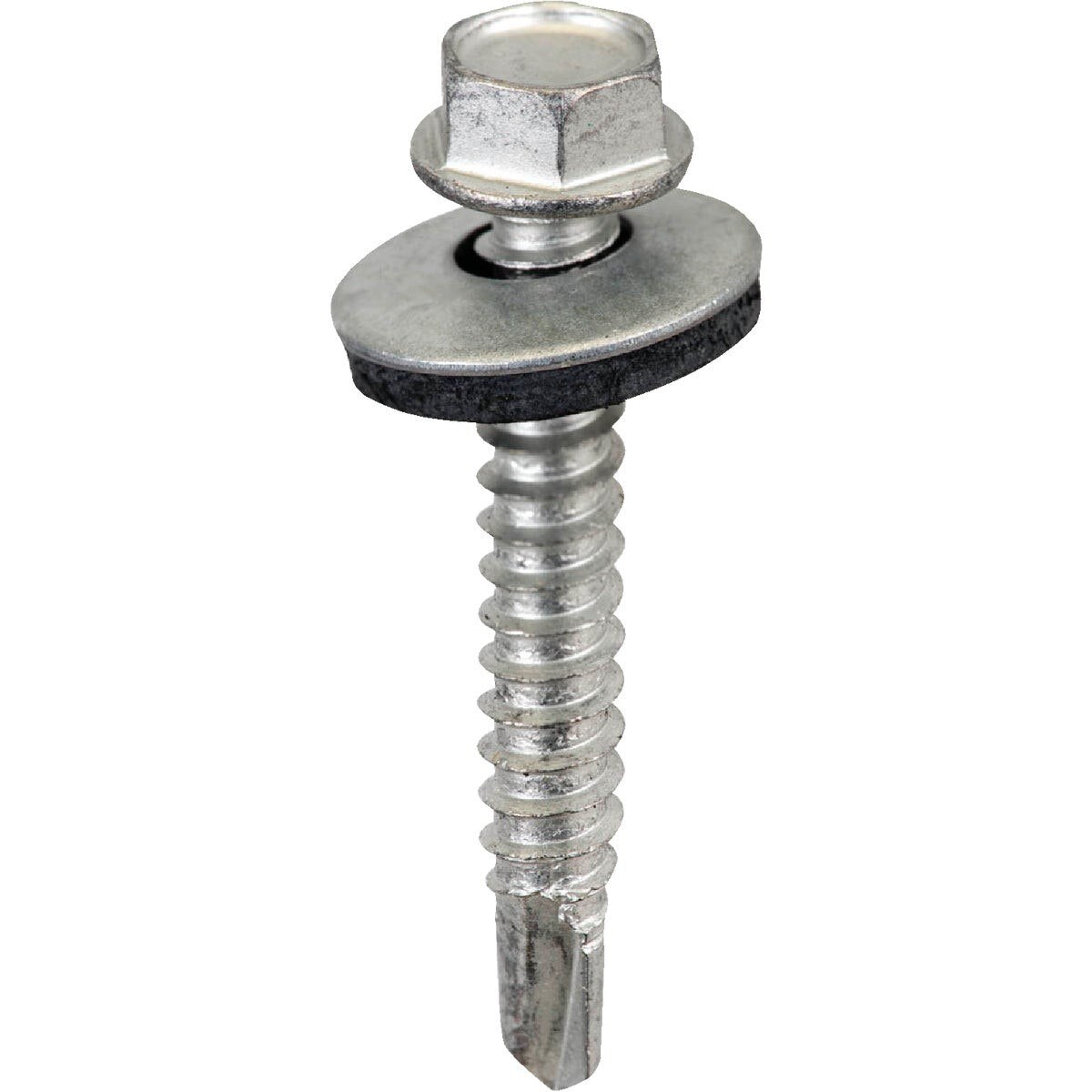

The ACORN SW-MM1212G250 is a #12 x 1-1/2 inch washered self-drilling framing screw engineered for metal-to-metal fastening applications. Manufactured from C1022 steel with a hardened body and Type 3 drill point, this screw drives through light-gauge steel framing without a pilot hole. A 1,000-hour Dacro coating provides galvanic corrosion resistance in exterior and moisture-exposed assemblies. The unslotted indented hex washer head with an EPDM bonded washer creates a weather-resistant, load-bearing connection point. Sold in a 250-count pack. This fastener is installed by framing contractors, metal building erectors, and experienced structural trade workers.

This screw is suited for light-gauge metal framing, metal purlin attachment, and similar structural metal-to-metal connections found in commercial and residential construction. The self-drilling Type 3 point eliminates pre-drilling steps, reducing installation time on repetitive fastening patterns. The EPDM bonded washer distributes load and provides a seal at the fastener head, making it appropriate for roof panel, wall panel, and framing assemblies where moisture infiltration must be controlled.

Key Features

• Self-drilling Type 3 point — no pilot hole required for light-gauge steel
• C1022 hardened steel construction for consistent drive torque and shear strength
• 1,000-hour Dacro galvanic coating for corrosion resistance in exterior applications
• EPDM bonded washer seals and distributes load at the fastener head
• Unslotted indented hex washer head undercut — driven with standard hex bit
• 250-count pack for production framing and panel work

Compatibility

Designed for metal-to-metal fastening applications including light-gauge steel framing, purlins, and structural panel attachment where a self-drilling hex washer head screw with an EPDM bonded washer is specified.

Installation Notes

Installation is performed by qualified framing contractors or sheet metal workers using a hex-drive bit and variable-speed screw gun. Maintain correct RPM to allow the Type 3 drill point to engage cleanly without stripping the head or overdriving the EPDM washer. Follow applicable building code requirements, including IBC fastener schedules and manufacturer-specified fastener spacing for structural assemblies. Do not substitute this fastener in applications requiring stainless steel or a different point type without verifying structural and corrosion requirements.

Technical Specifications

• Screw Size: #12 x 1-1/2 inches
• Material: C1022 steel, hardened
Coating: Dacro, 1,000-hour corrosion resistance
• Head Style: Unslotted indented hex washer head undercut
• Washer: EPDM bonded
• Point Type: Type 3 self-drilling
• Application: Metal to metal
• Quantity: 250 per pack
• Package Weight: 4.227 pounds

Standard Information

• Brand: ACORN
• Manufacturer Part Number: SW-MM1212G250
