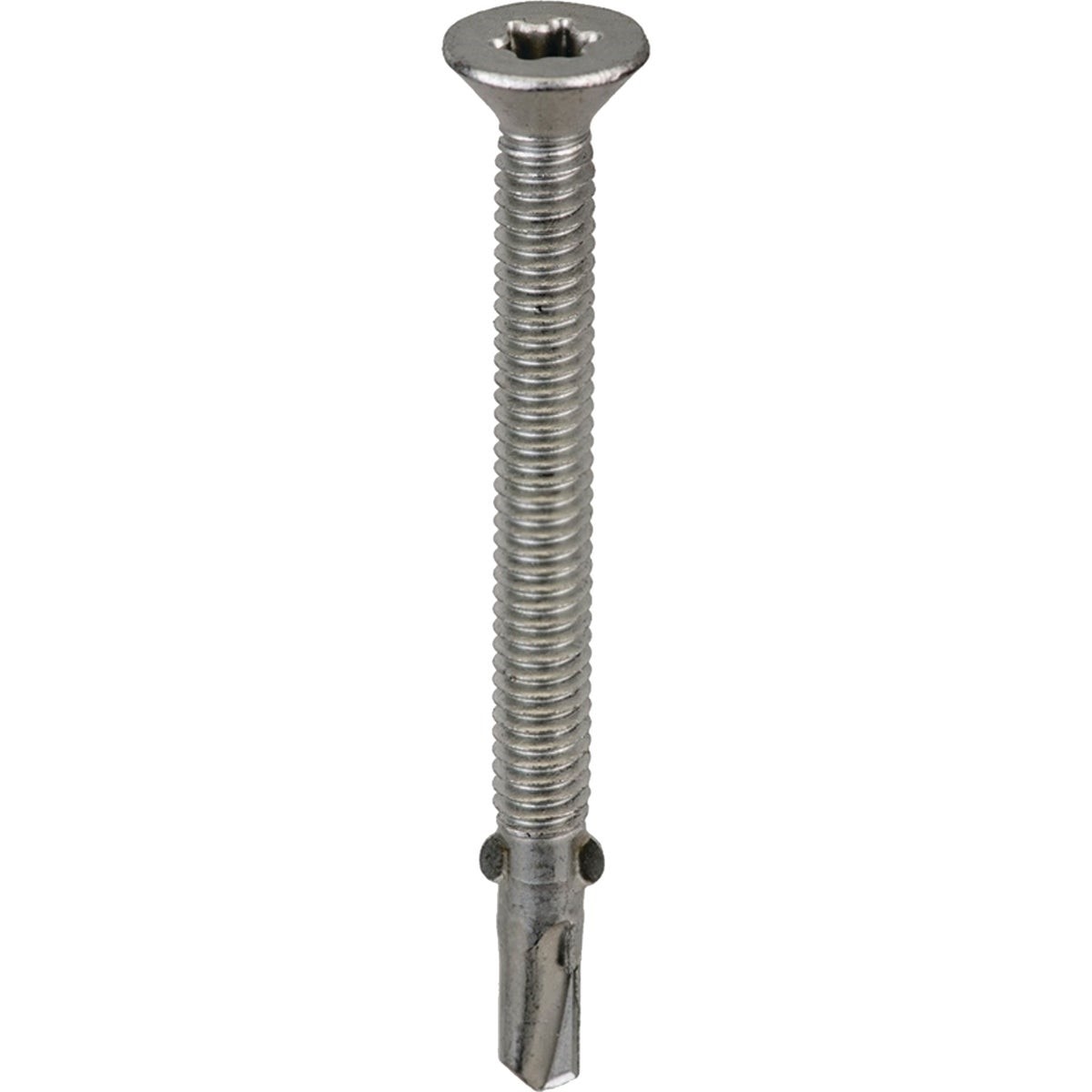

Acorn S-WM12212G250 Self-drilling Screw 250 Count

Product Description

The ACORN S-WM12212G250 is a winged self-drilling screw engineered for fastening wood to steel or aluminum without predrilling. Made from C1022 steel with case hardening, these screws feature a 3-point drill tip that penetrates up to 0.25 inches of metal. Reamer wings bore cleanly through the wood layer and snap off automatically when they contact metal, allowing the screw to seat flush. A shank slot captures steel shavings and improves drilling action throughout the drive cycle. All screws carry a dacro coating rated to 1,000 hours of salt spray exposure for corrosion resistance in harsh environments.

These screws are sized at 2.5 inches in length and are designed for applications where wood panels or framing meet a steel or aluminum substrate. Typical install scenarios include trailer beds, trailer walls, and similar light structural assemblies where a clean, one-step fastening process is required. The star drive flat head configuration reduces cam-out, handles greater torque than Phillips or square drive heads, and eliminates fastener spinning during installation. A T30 driver bit is required and is not included in the pack. Each pack contains 250 screws.

Key Features

• C1022 steel construction with case hardening for durability and shear strength
• 3-point drill tip penetrates up to 0.25 inches of metal with no predrilling required
• Reamer wings drill through wood and snap off automatically at the metal surface
• Shank slot retains steel shavings and maintains clean drilling action
• Star drive flat head reduces cam-out and handles higher torque than Phillips or square drive
• Dacro coating rated to 1,000 hours salt spray resistance for corrosion protection

Compatibility

Designed for fastening wood to steel or aluminum substrates up to 0.25 inches thick. Suited for trailer bed and trailer wall construction and similar wood-to-metal assemblies. Requires a T30 star drive bit, not included.

Installation Notes

Installation is typically performed by carpenters, fabricators, or trailer technicians using a power drill or impact driver. Use a T30 star drive bit sized for the fastener head. No pilot hole is required in the metal substrate. Allow the reamer wings to clear the wood layer fully before the screw contacts metal so the wings snap off cleanly and the shank seats properly.

Technical Specifications

• Material: C1022 Steel, Case Hardened
• Length: 2.5 inches
• Drive Type: Star Drive (T30), Flat Head
• Drill Point: 3-Point Self-Drilling
• Max Metal Penetration: 0.25 inches (no predrilling)
• Coating: Dacro, 1,000-Hour Salt Spray Rated
• Substrate: Wood to Steel or Aluminum
• Quantity per Pack: 250
• Pack Weight: 5.213 pounds
• UPC: 00810468001484

Standard Information

• Brand: ACORN
• Manufacturer Part Number: S-WM12212G250
