Aco 37419 Tile Grate 55.12 in QTZ37419

Product Description

The ACO 37419 tile grate is a stainless steel drain grate designed for linear shower drains, with a length of 1400 mm (55.12 in). It is manufactured from stainless steel grade 304 and is supplied with a lifting key. The grate fits ShowerDrain channels and is available with plain or flanged channel edge options; surface finish options include electropolished or oil rubbed bronze.

• Stainless steel grade 304 construction; surface finish options electropolished or oil rubbed bronze; supplied with lifting key

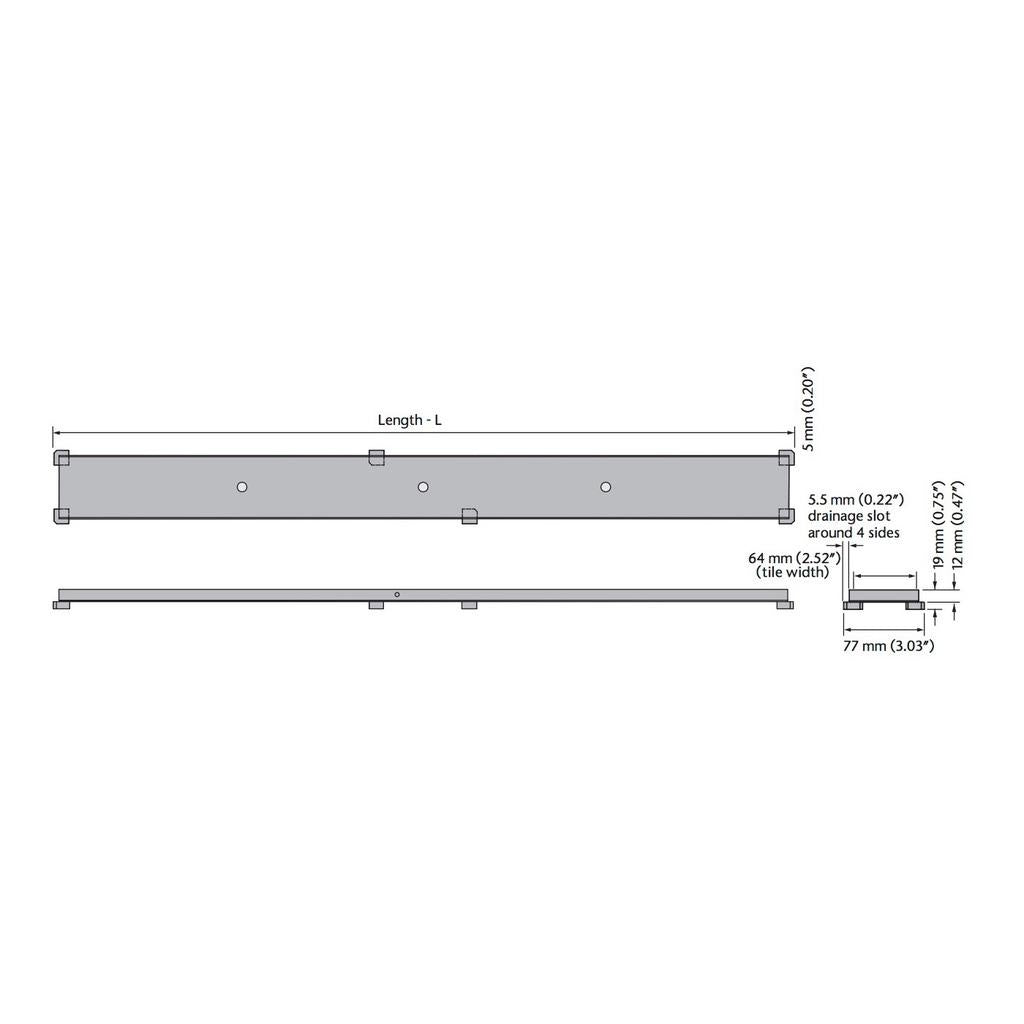

• Length 1400 mm (55.12 in) and grate width 77 mm (3.03 in); intake area 160.6 sq in
• Compatible with ShowerDrain channel systems; channel edge available as plain edge or flanged edge; rectangular grid shape

Product Highlights

Linear shower grate, 1400 mm length, 77 mm grate width, stainless steel grade 304

Product Information

Standard Information

• Brand: ACO
• Manufacturer Part Number: 37419
• Country of Origin: USA

Technical Specifications

• Brand: ACO
• Manufacturer Part Number: 37419
• Alternate Part Number: QTZ37419
• Manufacturer: ACO, Inc. USA
• Product Type: Tile grate / Channel drain trim
• Material: Stainless steel grade 304
• Finish: Electropolished or oil rubbed bronze
• Collection: QuARTz - Stainless Steel Grates
• Length: 1400 mm (55.12 in)
• Grate Width: 77 mm (3.03 in)
• Intake Area: 160.6 sq in
• Weight: 3.30 lbs
• Shower Channel Edge Options: Plain edge or flanged edge
• Lifting Key Supplied: Yes
• Grid Shape: Rectangular
• UPC: 855051005821
• Online Product ID: 526667
