Aco 37418 Quadrato Grate 55.12 inch

Product Description

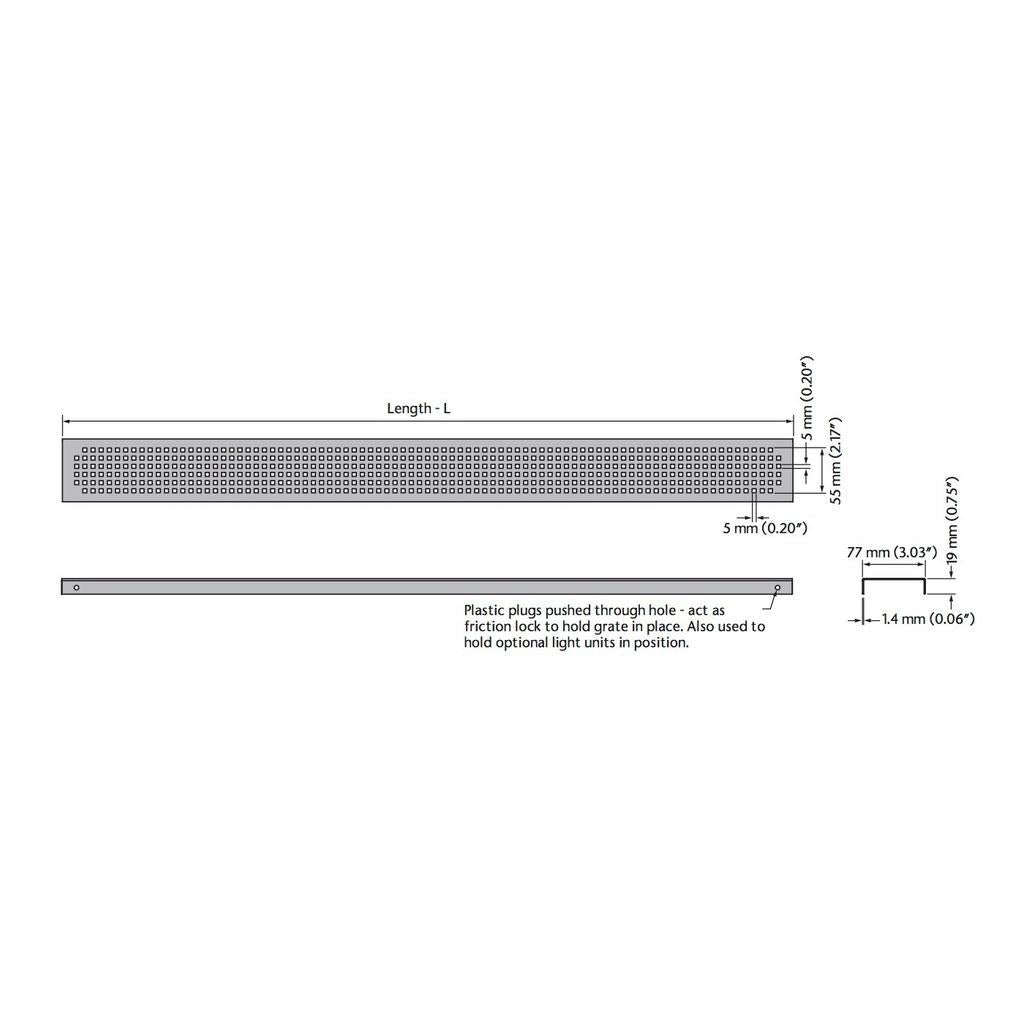

The Aco 37418 is a Quadrato-pattern shower drain grate constructed from 20 gauge 304 stainless steel with an electropolished finish. The grate measures 55.12 inch length x 3.03 inch width and is approximately 0.75 mm (0.0295 in) thick and provides an intake area of 31.01 square inches. It is designed for use on premium linear shower drain channels and features a regular geometric hole pattern of 0.2 inch square holes.

• Constructed from 20 gauge 304 stainless steel with electropolished finish
• Dimensions: 55.12 x 3.03 x 0.0295 inches (1400 mm x 77 mm x 0.75 mm); intake area 31.01 sq in
• Quadrato pattern with 0.2 inch square holes; intended for premium linear shower drain channels
• Designed for premium linear shower drain channels; lifting key included

Product Highlights

Quadrato 304 stainless steel shower grate, 55.12 inch length, 31.01 sq in intake area

Product Information

Standard Information

• Brand: ACO
• Manufacturer Part Number: 37418
• Country of Origin: USA

Technical Specifications

• Manufacturer: ACO
• MPN: 37418
• Product Type: Shower drain grate
• Pattern: Quadrato
• Length: 55.12 inches
• Width: 3.03 inches
• Thickness: 0.0295 inches (0.75 mm) - corrected
• Gauge: 20 gauge (~0.9 - 1.0 mm)
• Material: 304 stainless steel
• Finish: Electropolished
• Intake Area: 31.01 square inches
• Product Dimensions: 55.12 x 3.03 x 0.0295 inches
• Collection: QuARTz - Stainless Steel Grates
• Lifting Key Included: Yes
• SKU: 203336
• Internal Reference: ACO-37418
• Item model number: 37418
• UPC: 855051005746
• ASIN: B01FB1W2B2
• Date First Available: May 7, 2016
• Shower channel edge options: Plain edge or flanged edge
