Aco 37407 Mix Stainless Steel Grate (47.24 in) 4002626307095

Product Description

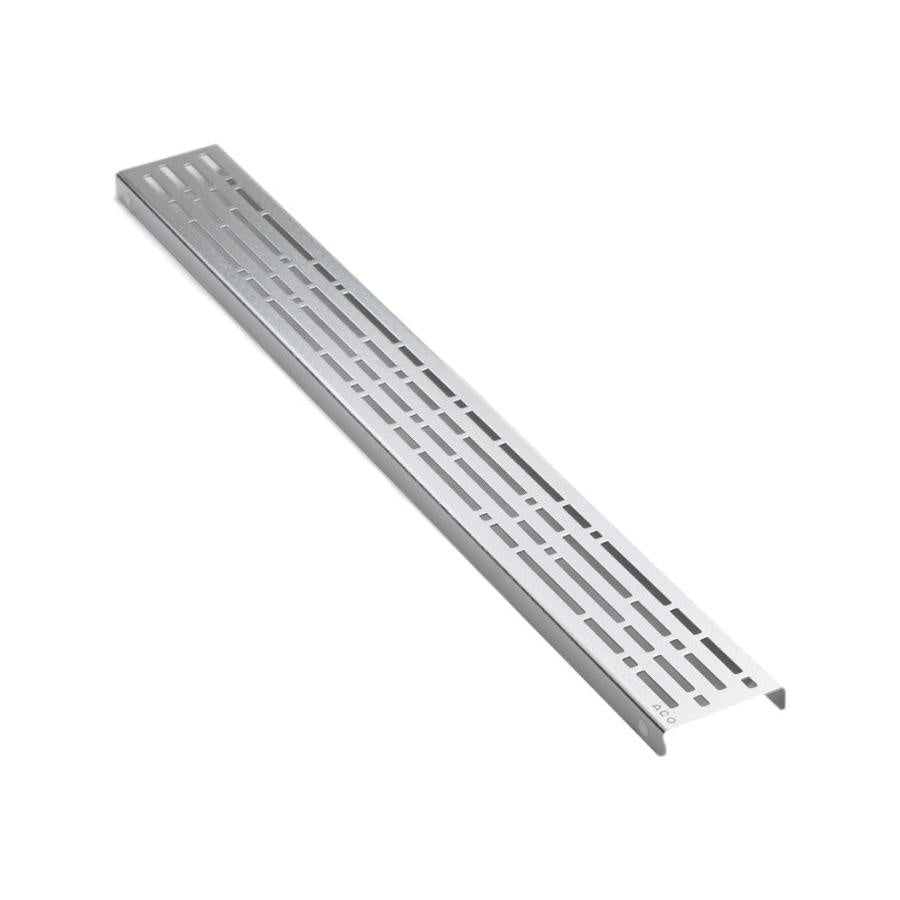

Aco 37407 is a mix-pattern stainless steel shower channel grate designed for premium linear shower drains. The grate measures 47.24 x 3.03 x 0.75 inches, is fabricated from 16 gauge 304 stainless steel with an electropolished finish, and provides an intake area of 31.43 square inches. Slot widths are 0.2 inches in a Morse-code-like pattern. The grate interfaces with QuARTz ACO showerdrain systems and is supplied with a lifting key. It provides a finished surface and water intake for shower drain channels.

• 16 gauge 304 stainless steel construction with electropolished finish

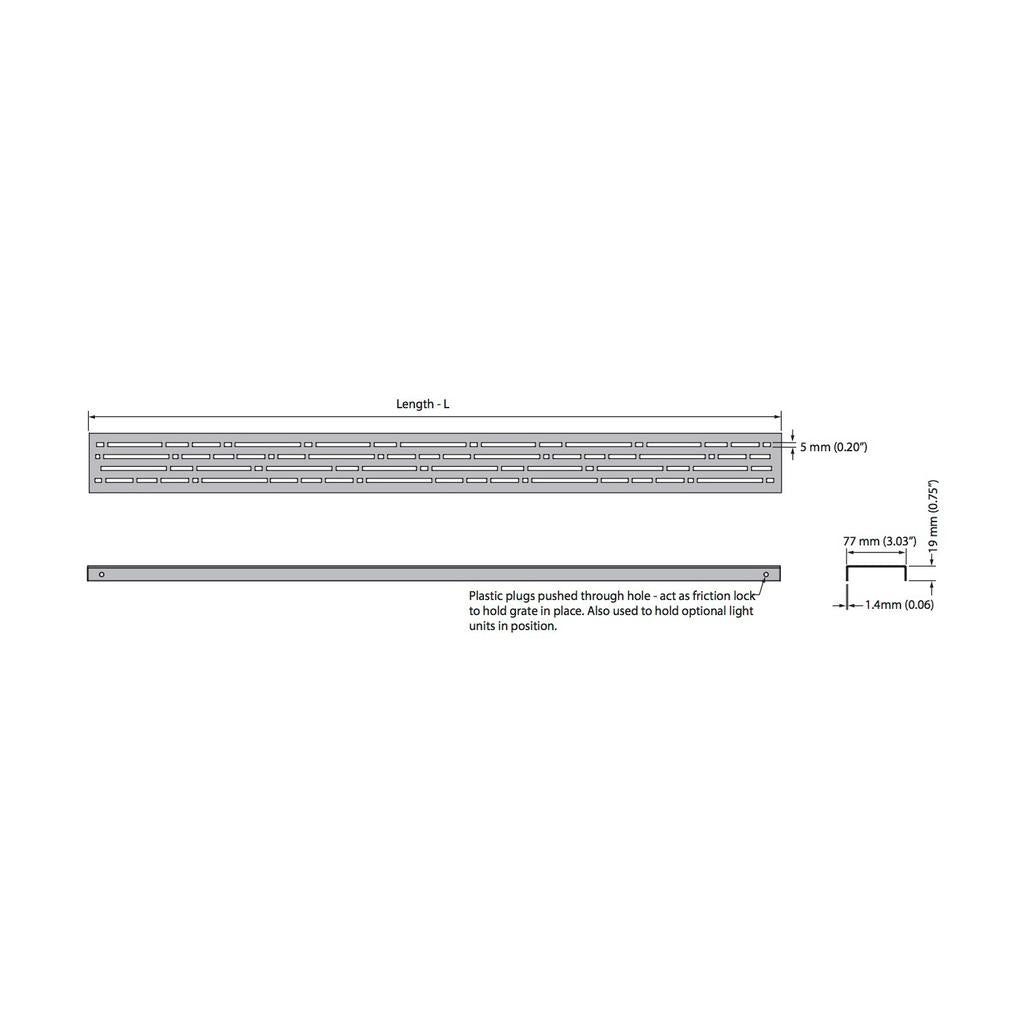

• Dimensions: 47.24 x 3.03 x 0.75 inches (1200 x 77 x 19 mm); intake area 31.43 sq in; slot width 0.2 in
• Mix pattern linear grate for QuARTz ACO showerdrain systems; supplied with lifting key

Product Highlights

Mix-pattern electropolished 304 stainless steel grate, 47.24 in length, 31.43 sq in intake area

Product Information

Standard Information

• Brand: ACO
• Manufacturer Part Number: 37407
• Country of Origin: USA

Technical Specifications

• MPN: 37407
• Manufacturer: Aco
• Product Name: Mix stainless steel grate
• Product Type: Waste and drain part (grate)
• Collection: QuARTz - Stainless Steel Grates
• Material: 16 gauge 304 stainless steel
• Thickness: 16 gauge (≈0.0635 in)
• Finish: Electropolished
• Finish Options: Electropolished; Oil rubbed bronze
• Dimensions: 47.24 x 3.03 x 0.75 inches
• Length: 47.24 inches
• Grate Width: 3.03 inches
• Intake Area: 31.43 square inches (approx. 202.8 cm2)
• Slot Width: 0.2 inches
• Weight: 2.9 lbs (1.32 kg)
• Included Components: Lifting key (supplied); interfaces with QuARTz ACO showerdrain systems
• Used On: Premium shower drain channel
• UPC: 02626307095
• Alternate Part Number: 4002626307095
• Item Model Number: 37407
• Online Product ID: 526655
• ASIN: B00BBVKRBE
• Note: All grates supplied with lifting key
