Aco 37334 Tile Stainless Steel Grate 39.37 in (1000 mm)

Product Description

Aco 37334 is a tile stainless steel grate designed for shower drainage. The grate is manufactured from grade 304 stainless steel and measures 1000 mm (39.37 in) in length with a 77 mm (3.03 in) grate width and an intake area of 116.7 sq. in. Surface finish options include electropolished or oil rubbed bronze, and the shower channel is available with plain or flanged edge.

• Construction: 304 stainless steel (grade 304 austenitic) for corrosion resistance

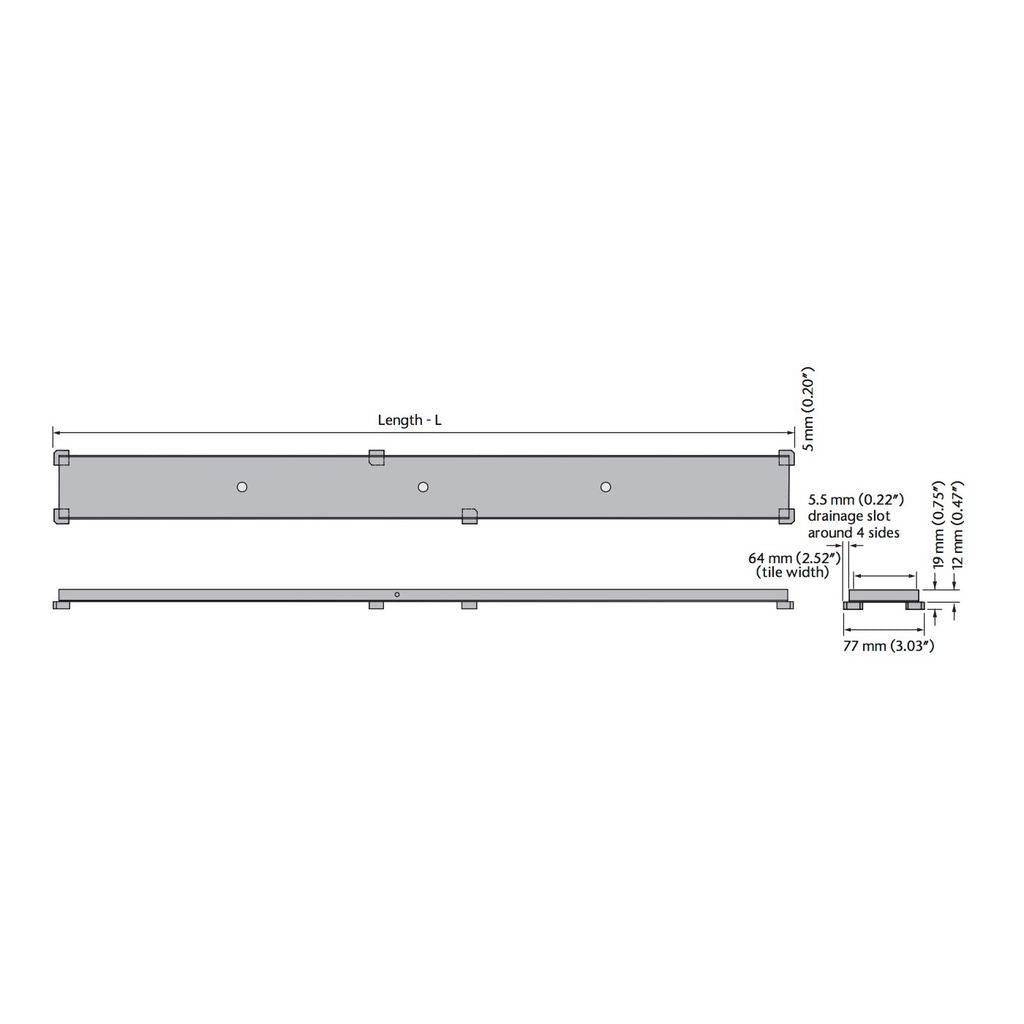

• Dimensions: 1000 mm (39.37 in) length; grate width 77 mm (3.03 in); intake area 116.7 sq. in
• Options: electropolished or oil rubbed bronze finishes; plain edge or flanged edge channel; supplied with lifting key

Product Highlights

Linear tile-in shower grate, 1000 mm length, 77 mm width, grade 304 stainless steel, multiple finish and channel edge options

Product Information

Standard Information

• Brand: ACO
• Manufacturer Part Number: 37334
• Country of Origin: USA

Technical Specifications

• Brand: ACO
• MPN: 37334
• Manufacturer: ACO, Inc. USA
• Material: Stainless steel, grade 304
• Construction Grade: 100% Grade 304 austenitic stainless steel
• Length: 1000 mm (39.37 in)
• Grate Width: 77 mm (3.03 in)
• Height: 0.75 in
• Thickness: 0.04 in
• Intake Area: 116.7 sq. in
• Surface Finish: Electropolished or oil rubbed bronze
• Shower Channel Options: Plain edge or flanged edge
• Collection: QuARTz - Stainless Steel Grates / Tile-In
• Product Type: Waste and drain parts
• Supplied With: Lifting key
• Weight: 2.2 lbs.
• UPC: 4002626147752
• SKU: 37334
• Dimensions: 39.37 in L x 3.03 in W x 0.75 in H x 0.04 in THK
