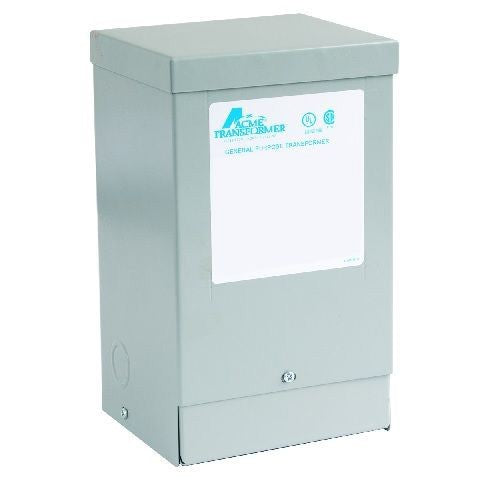

Acme TF217437S Low Voltage Distribution Transformer - Single Phase, 190/200/208/220 X 380/400/416/440 - 120/240V, 1kVA

Product Description

The ACME TF217437S is a low voltage distribution transformer with a single phase and 1kVA power. It supports primary voltages of 190/200/208/220 X 380/400/416/440 V and secondary voltages of 120/240V. Designed for quiet operation, it operates below NEMA standards and features an electrostatic shield for enhanced protection.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Encapsulated core and coil

Product Highlights

This distribution transformer is designed for industrial and commercial applications, with ratings for 600 volts and below.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TF217437S
• Country of Origin: MX

Technical Specifications

• Catalog Number: TF217437S
• CE Compliant: CE Marked
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 1
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 190 / 200 / 208 / 220 X 380 / 400 / 416 / 440 V
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• Primary Voltage: 190/200/208/220 X 380/400/416/440 V
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Enclosure Type: NEMA 3R
• Insulation: 180 deg C
• Phase: 1 ph
• Temperature Rating (Degrees F): 115 deg C
• Type: Low Voltage
• Connection type: Wire Lead
• Housing material: ZFIN
• Manufacturer Name: Hubbell
• UNSPSC: 39121001
• Connection Type: Wire Lead Screw Terminal
• Enclosure: NEMA 3R Steel
• Frequency: 50 Hz
• Insulation Material: 180 DEG C Class H
• Max Temperature: 115 degrees C
• Number of Phases: 1 Phase
• Rating: NEMA 3R
• Secondary Voltage: 120 V
• Standard: C22.2 No. 47,UL 506
• Temperature Rating: 115 degrees C
• Brand: Acme Electric Company
• Sub Brand: Acme
• MPN: TF217437S
• Power Rating: 1 kVA
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, E79947V1, 50B8, X3221, CSA Certified, CE Certified, OSHA Approved, ANSI Specified, IEEE
