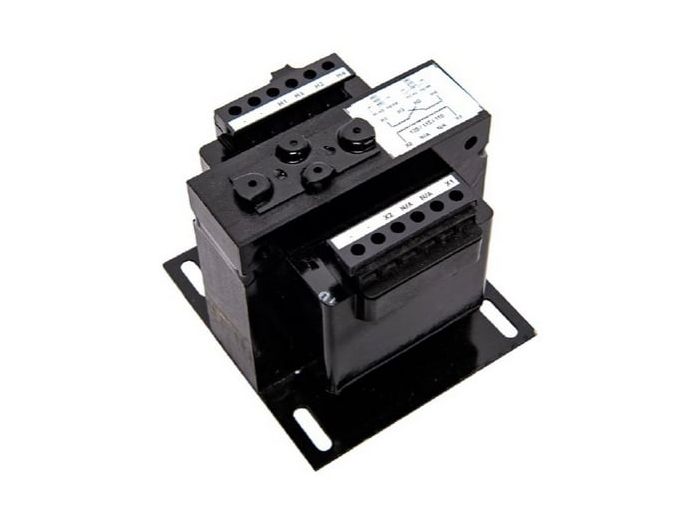

Acme TB75N014 Industrial Control Transformer 240x480 Primary Volts - 120x240 Secondary Volts

Product Description

The ACME TB75N014 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. It is a dry-type, step-down transformer with a secondary control circuit isolated from the primary line circuit for safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer features integrally molded terminal blocks, copper windings, and a heavy gauge steel mounting plate. It meets UL, CSA, NEMA, ANSI, and OSHA standards.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB75N014
• Country of Origin: United States

Technical Specifications

• Catalog Number: TB75N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer Part Number: TB75N014
• Manufacturer: Acme Electric
• Product Series: TB
• Description: Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 75 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Brand: Acme Electric
• Primary Voltage Rating (AC): 480 V
• Secondary Voltage Rating (AC): 240 V
• MPN: TB75N014
• Country of Origin: United States
