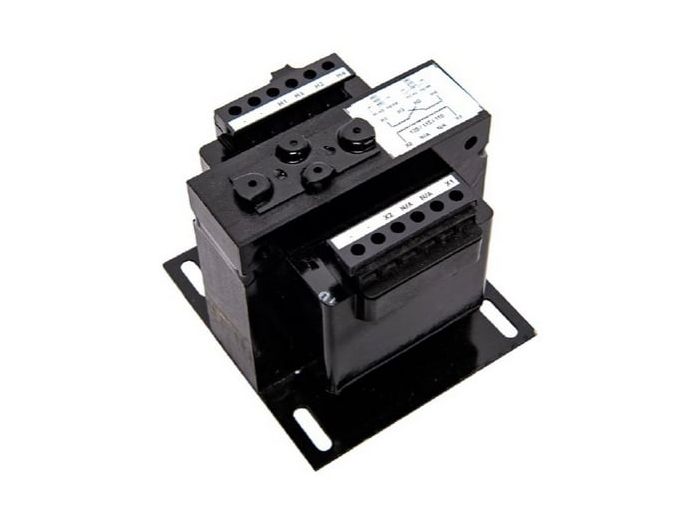

Acme TB750N014 Industrial Control Transformer 240x480 Primary Volts - 120x240 Secondary Volts

Product Description

The Acme TB750N014 industrial control transformer is designed with 240X480 primary volts and 120X240 secondary volts. Its encapsulated design protects the core and coil assembly from contaminants. Constructed with silicon steel lamination to minimize core losses and increase efficiency. It is UL and cUL Listed.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer accommodates momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB750N014
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB750N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• UPC: 047503012048
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Brand: Acme Electric Company
• Width: 9.0 in
• Country of Origin: Mexico
• Number of Items: 1
• Manufacturer: Acme Electric
• Model: TB750N014
• Part Number: TB750N014
• Included Components: Cap
• Manufacturer Part Number: TB750N014
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 750 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting Type: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 21.14 lbs
• Gross Weight: 21.14 lbs
• Connection Type: Integrally Molded Terminal Block
• Enclosure Type: Open
• Housing Material: Silicon Steel
• Insulation: 130 deg C
• Temperature Rating: 80 deg C
