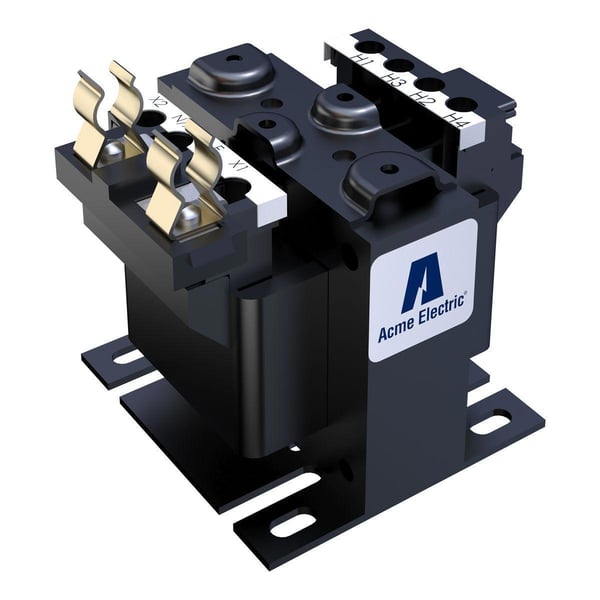

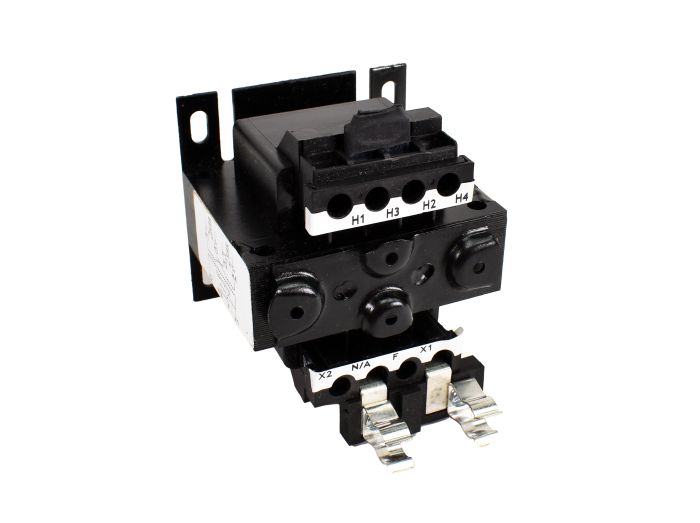

Acme TB50N008F0 Industrial Control Transformer 0.050KVA 240X480-120 F0

Product Description

The ACME TB50N008F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized. Its encapsulated design protects the core and coil assembly from contaminants. Constructed with silicon steel lamination to minimize core losses and increase efficiency. It is a dry-type, step-down transformer with secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer features integrally molded terminal blocks and series-parallel connecting links to save on wiring and labor costs. Fuse block kits are available and easily adaptable.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB50N008F0

Technical Specifications

• Catalog Number: TB50N008F0
• kVA: 0.050
• Secondary Voltage: 110 V, 115 V, 120 V
• UPC: 047503010709
• Frequency Rating: 50/60 Hz
• Primary Voltage: 220 V, 230 V, 240 V, 440 V, 460 V, 480 V
• Certified Listed: UL Listed, cUL Listed
• Series: TB
• Connection type: Integrally Molded Terminal Block
• Manufacturer Name: Acme Industrial Company
• UNSPSC: 39121026
• Type: Industrial
• Mounting Type: Plate
• Housing Material: Silicon Steel
• Power Rating: 0.05 kVA
• Phase: 1
• Enclosure Type: Open
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: ICT .050KVA 240X480-120 F0
• VA Rating: 50 VA
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 2.515 lbs
• Gross Weight: 3.2 lbs
• Model: TB50N008F0
• Height: 4.0397 in
• Length: 3.32 in
• Width (in): 3
