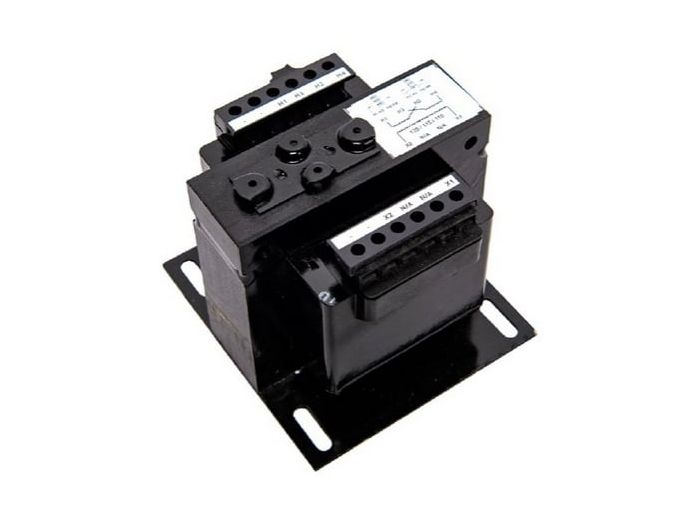

Acme TB50N007 Industrial Control Transformer 50VA

Product Description

The ACME TB50N007 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized. Its encapsulated design protects the core and coil assembly from contaminants. This dry-type, step-down transformer isolates the secondary control circuit from the primary line circuit, ensuring safety. It is suitable for motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

• Encapsulated design protects against contaminants
• Constructed with high quality silicon steel lamination
• Integrally molded terminal blocks with isolation barriers

Product Highlights

The ACME TB50N007 industrial control transformer ensures reliable operation of electromagnetic components with excellent voltage regulation and a robust design.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB50N007
• Country of Origin: MX

Technical Specifications

• Catalog Number: TB50N007
• Construction: Encapsulated
• Frequency Rating: 50/60 Hz
• Brand: Acme Electric
• Manufacturer Part Number: TB50N007
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 208/500,220/380/440/550,230/400/460/575,240/416/480/600 Primary Volts - 85/100/110,91/110/120,95/115/125,99/120/130 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 50 VA
• Primary Voltage: 208 V, 220 V, 230 V, 240 V, 380 V, 400 V, 416 V, 440 V, 460 V, 480 V, 500 V, 550 V, 575 V, 600 V
• Secondary Voltage: 100 V, 110 V, 115 V, 120 V, 125 V, 130 V, 85 V, 91 V, 95 V, 99 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• RoHS: Yes
• COO: MX
• ECCN: EAR99
• Supplier Standard Pack: 1
