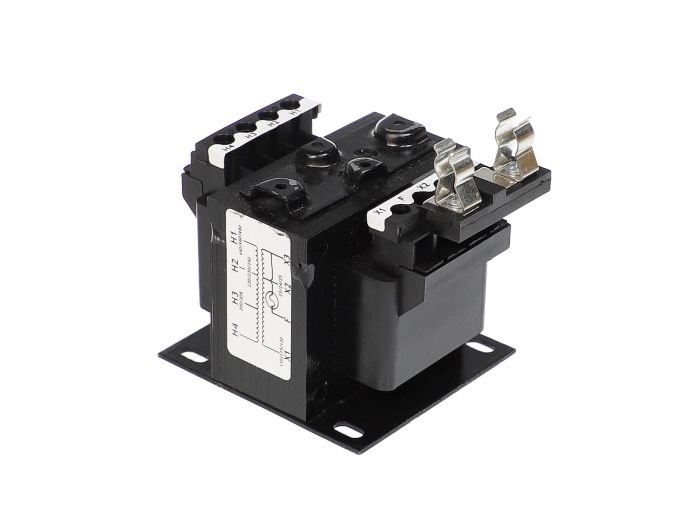

Acme TB50N004F0 Industrial Control Transformer 50 VA REPLACEMENT TB50N004F0

Product Description

The Acme TB50N004F0 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized. Constructed with silicon steel lamination to minimize core losses and increase efficiency. The transformer's windings are encased in a thermoplastic end cap, protecting them from contaminants. Suitable for machine tool control circuit applications.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed for reliable step-down voltage control in machine tool and automation circuits. Suitable for motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB50N004F0
• Country of Origin: United States

Technical Specifications

• Catalog Number: TB50N004F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 23,24,25/110,115,120 V
• Frequency Rating: 50/60 Hz
• Primary Voltage: 200, 208/220, 230, 240/440, 460, 480 V
• Certified Listed: UL Listed cUL Listed
• Brand: Acme Electric
• Number of Items: 1
• UPC: 047503008843
• Manufacturer: Acme Electric
• Unit Count: 1.0 Count
• Model: TB50N004F0
• Part Number: TB50N004F0
• MPN: TB50N004F0
• Country of Origin: United States
• Category: Business & Industrial
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 200,208/220,230,240/440,460,480 Primary Volts -23,24,25/110,115,120 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 50 VA
• Secondary Voltage: 110 V, 115 V, 120 V, 23 V, 24 V, 25 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 3.38 lbs
• Gross Weight: 4.15 lbs
• UNSPSC Code: 39120000
• Dimensions: 3.73 in H X 2.79 in D
