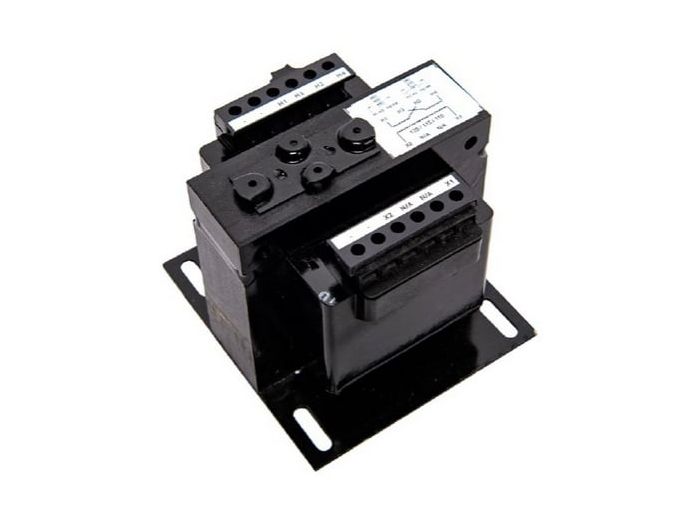

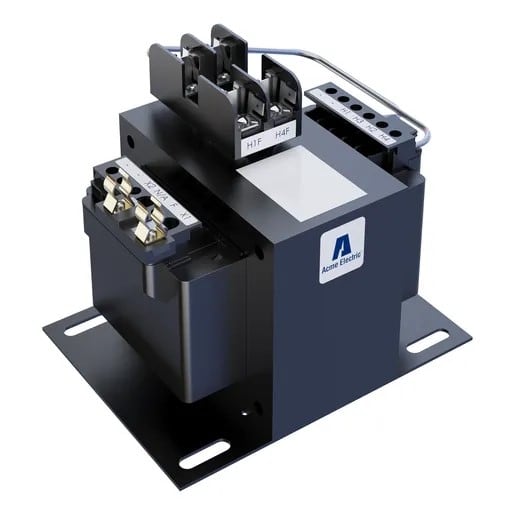

ACME TB50N001F2 Industrial Control Transformer 0.050 kVA

Product Description

The ACME TB50N001F2 is an industrial control transformer designed for managing momentary current inrush when electromagnetic components are activated. This dry-type, step-down transformer effectively isolates the secondary control circuit from the primary line. It features windings and terminations sealed within an epoxy encapsulant, encased in a thermoplastic end cap.

• Designed for applications such as motor starters, contactors, and relays
• Encapsulated design protects internal components from contaminants
• Constructed with silicon steel lamination to reduce core losses

Product Highlights

This transformer is suitable for various control systems and robotics, ensuring reliable operation and longevity.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB50N001F2

Technical Specifications

• Product Series: TB
• kVA Rating: 0.050 kVA
• Primary Voltage: 120 V, 240 V
• Secondary Voltage: 12 V, 24 V
• Frequency: 50/60 Hz
• Approvals: CSA, cUL Listed, UL Listed
• Height: 4.04 in
• Width: 3 in
• Length: 3.32 in
• Weight: 2.6 lb
