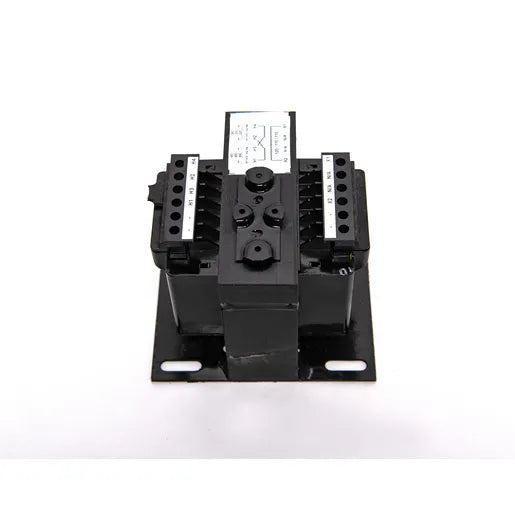

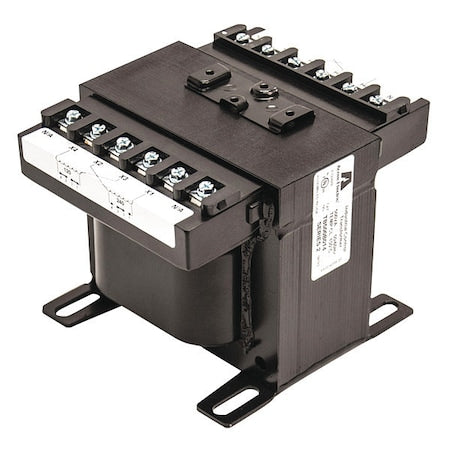

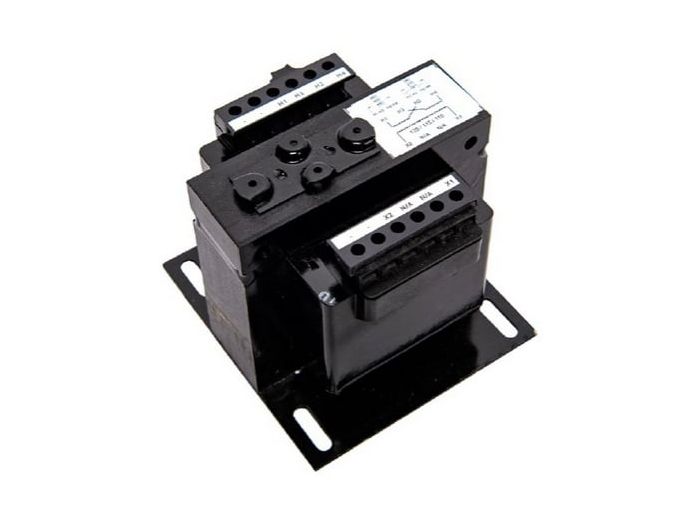

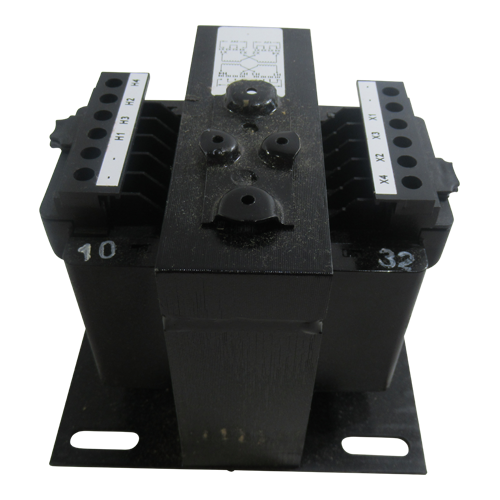

Acme TB500N001 Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts

Product Description

The ACME TB500N001 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. These dry-type, step-down transformers isolate the secondary control circuit from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed to accommodate momentary current inrush, Acme's TB Series transformers ensure secondary voltage stability and safety with encapsulated windings and isolated circuits.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB500N001
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB500N001
• Construction: Encapsulated
• Secondary Voltage - Winding: 12/24 V
• UPC: 047503008614
• Frequency Rating: 50/60 Hz
• Primary Voltage: 120 X 240 V
• Manufacturer Part Number: TB500N001
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 500 VA
• Secondary Voltage: 12 V, 24 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 0 lbs
• Gross Weight: 13.86 lbs
• Country of Origin: Mexico
• Height: 5.45 in
• Width: 5.25 in
• Depth: 4.64 in
• Item: Control Transformer
• Input Voltage - Transformer: 120V AC, 240V AC
• Output Voltage - Transformer: 12V AC, 24V AC
• VA Rating - Transformer: 500 VA
• Phase - Electrical: 1
• Hz - Electrical: 50 Hz, 60 Hz
• Temp. Rise: Not Rated
• Enclosure Finish: Epoxy Resin Varnish
• Protective Device: None
• Enclosure Style - Transformer: Open
• Standards: cUL
• Item - Transformer: Control Transformer
