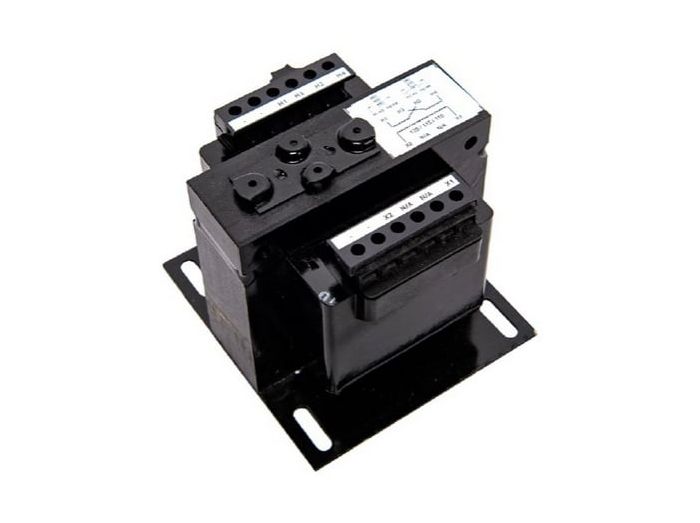

Acme TB250N014F3 Industrial Control Transformer 0.250KVA 240X480 - 120X240 F3

Product Description

The ACME TB250N014F3 Industrial Control Transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. These dry-type, step-down transformers isolate the secondary control circuit from the primary line circuit, ensuring safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed for use with motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N014F3
• Country of Origin: MX

Technical Specifications

• Catalog Number: TB250N014F3
• kVA: 0.250
• Secondary Voltage - Winding: 120 X 240 V
• UPC: 047503012383
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer: ACME Electric
• Manufacturer Part Number: TB250N014F3
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: ICT .250KVA 240X480 - 120X240 F3
• Phase: 3
• Type: Control
• VA Rating: 250 VA
• Secondary Voltage: 120 V, 240 V
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Approvals: CSA, UL
• Standard: UL Listed;cUL Listed
