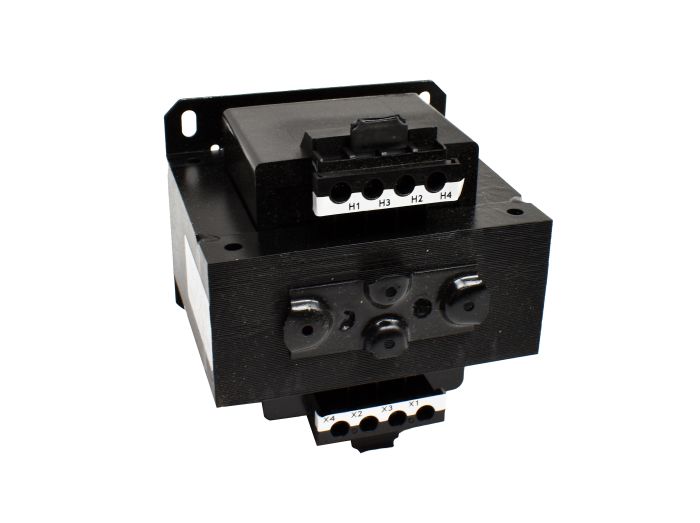

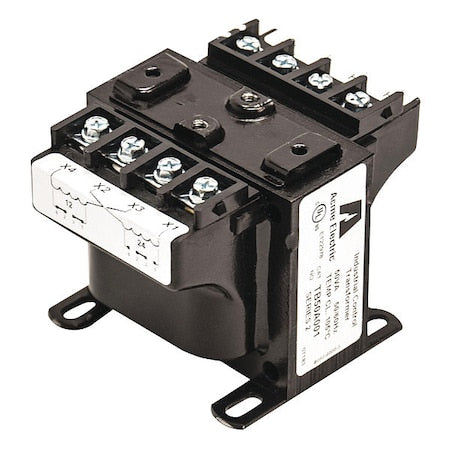

Acme TB250N014 Industrial Control Transformer 240x480 Primary Volts - 120x240 Secondary Volts

Product Description

The ACME TB250N014 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. It is constructed with silicon steel lamination to minimize core losses and increase efficiency.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer features integrally molded terminal blocks, fuse block kits, and series-parallel connecting links for easy installation. It meets UL, CSA, NEMA, ANSI, and OSHA standards.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N014
• Country of Origin: United States

Technical Specifications

• Application: Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
• Catalog Number: TB250N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• UPC: 047503012000
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Manufacturer Part Number: TB250N014
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 9.385 lbs
• Gross Weight: 10 lbs
• Brand: ACME ELECTRIC
• Country of Origin: United States
• MFR #: TB250N014
• Zoro #: G2137215
• UPC #: 047503004104
• Overall Height: 4.5 in
• Overall Width: 4.04 in
• Overall Depth: 4.64 in
• Manufacturers Warranty Length: 20 yr
• Depth: 3.97 in
• Height: 4.38 in
• Width: 4.5 in
• Item: Control Transformer
• Input Voltage - Transformer: 240V AC, 480V AC
• Output Voltage: 120V AC, 240V AC
• Power Rating: 250 VA
• Mounting - Transformer: Foot, Plate
• Hz - Electrical: 50 Hz, 60 Hz
• Enclosure Style - Transformer: Open
• Enclosure Finish: Epoxy Resin Varnish
• Output Voltage - Transformer: 120V AC, 240V AC
• Protective Device: None
• Item - Transformer: Control Transformer
• VA Rating - Transformer: 250 VA
• Mounting - Transformer: Foot, Plate
• Phase - Electrical: 1
• Temp. Rise: Not Rated
• Standards: cUL Listed, UL Listed
• Input Voltage: 240V AC, 480V AC
• Carton Quantity: 1
• Temperature Rise: Not Rated
• Frequency: 50/60 Hz
• Enclosure Style: Open
