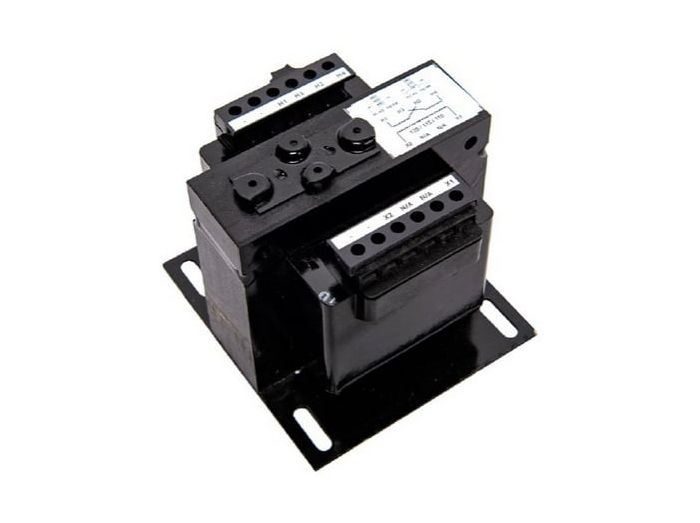

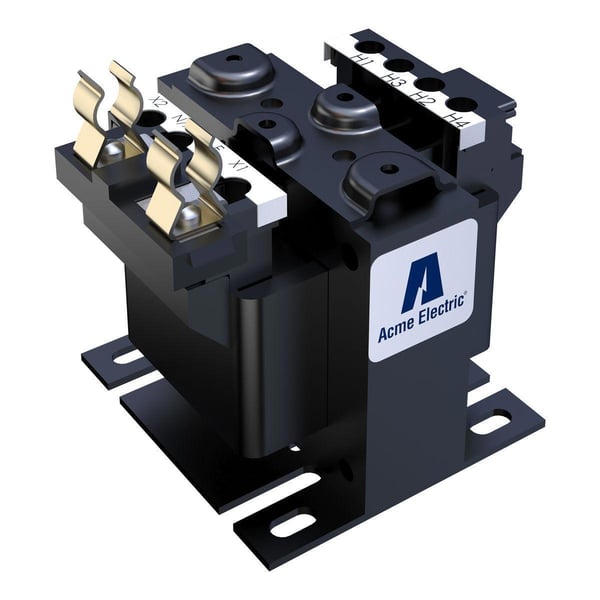

Acme TB250N008F0 Industrial Control Transformer 0.250KVA 240X480-120 F0

Product Description

The ACME TB250N008F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. Constructed with silicon steel lamination to minimize core losses and increase efficiency. It is suitable for motor starters, contactors, solenoids, timer circuits, relays, and control panels.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Encapsulated industrial control transformer with silicon steel lamination and molded terminal blocks, ensuring efficient and safe operation for various industrial applications.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N008F0
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB250N008F0
• kVA: 0.250
• Secondary Voltage - Winding: 120 V
• UPC: 047503010754
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer Part Number: TB250N008F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: ICT .250KVA 240X480-120 F0
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Secondary Voltage: 120 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 10.575 lbs
• Gross Weight: 11 lbs
• Number of Items: 1
• Unit Count: 1.0 Count
• Temperature Rating: 80 deg C
• Mounting Type: Plate
• Insulation: 130 deg C
• Housing Material: Silicon Steel
• Connection Type: Integrally Molded Terminal Block
• Series: TB
• Country of Origin: Mexico
• Minimum Operating Frequency: 50 Hz
• Current Conversion: AC to AC
• Conversion Function: Step-down
• Turns Ratio: 2:1
• Primary Voltage Rating (AC): 240/480 V
• Maximum Operating Frequency: 60 Hz
• Secondary Voltage Rating (AC): 115 V
• Brand: Acme Electric Corporation
• Color: Black
