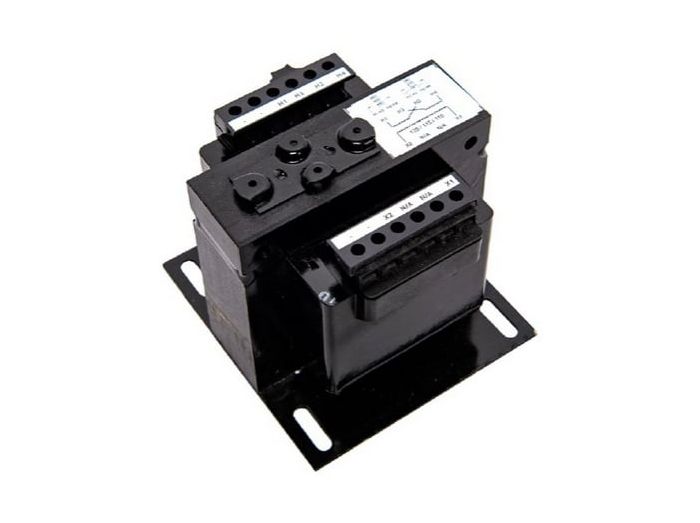

Acme TB250N005F0 Industrial Control Transformer 250VA

Product Description

The Acme TB250N005F0 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized. These dry-type, step-down transformers isolate the secondary control circuit from the primary line circuit for safety. Voltage regulation exceeds NEMA standards, ensuring reliable operation of electromagnetic components.

• Designed to accommodate momentary current inrush
• Dry-type, step-down transformers
• Secondary control circuit isolated from the primary line circuit

Product Highlights

The Acme TB series transformers are ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N005F0
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: TB250N005F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: 208,230,460 Primary Volts -115 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Primary Voltage: 208 V, 230 V, 460 V
• Secondary Voltage: 115 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Application: Acme
• Catalog Number: TB250N005F0
• Construction: Encapsulated
• Frequency Rating: 50/60 Hz
• Certified Listed: UL Listed cUL Listed
• Width: 6.5 in
• Country of Origin: Mexico
• Brand: Acme Electric Company
• Item Height: 7.000
• Item Length: 8.200
• Item Width: 6.700
