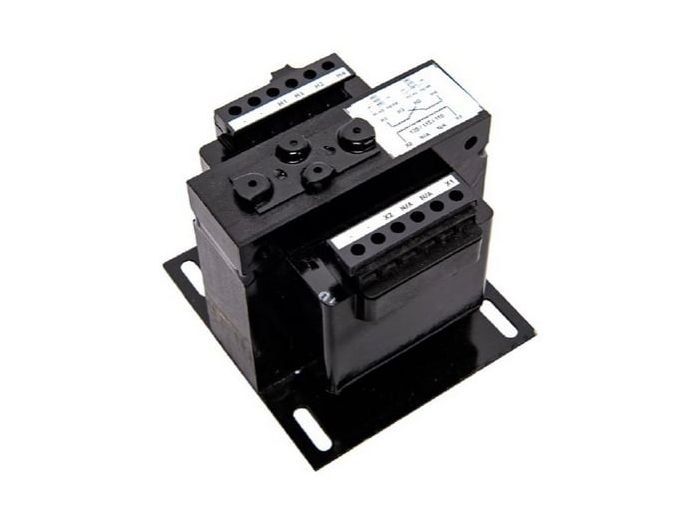

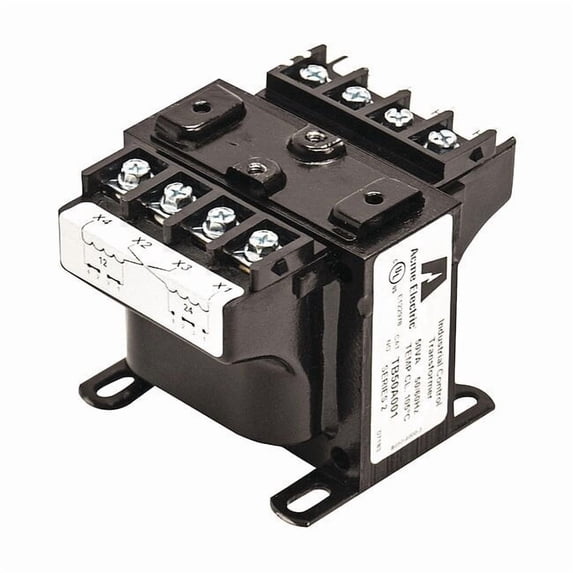

Acme TB250N001 Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts

Product Description

The ACME TB250N001 Industrial Control Transformer is designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability. The transformer's windings and internal terminations are encased in a thermoplastic end cap, protecting them from contaminants. These step-down transformers assure maximum safety with a secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer features encapsulated design, silicon steel lamination, and integrally molded terminal blocks. It is suitable for motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N001

Technical Specifications

• Catalog Number: TB250N001
• Construction: Encapsulated
• Secondary Voltage - Winding: 12/24 V
• UPC: 047503008591
• Frequency Rating: 50/60 Hz
• Primary Voltage: 120 X 240 V
• Manufacturer Part Number: TB250N001
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Secondary Voltage: 12 V, 24 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
