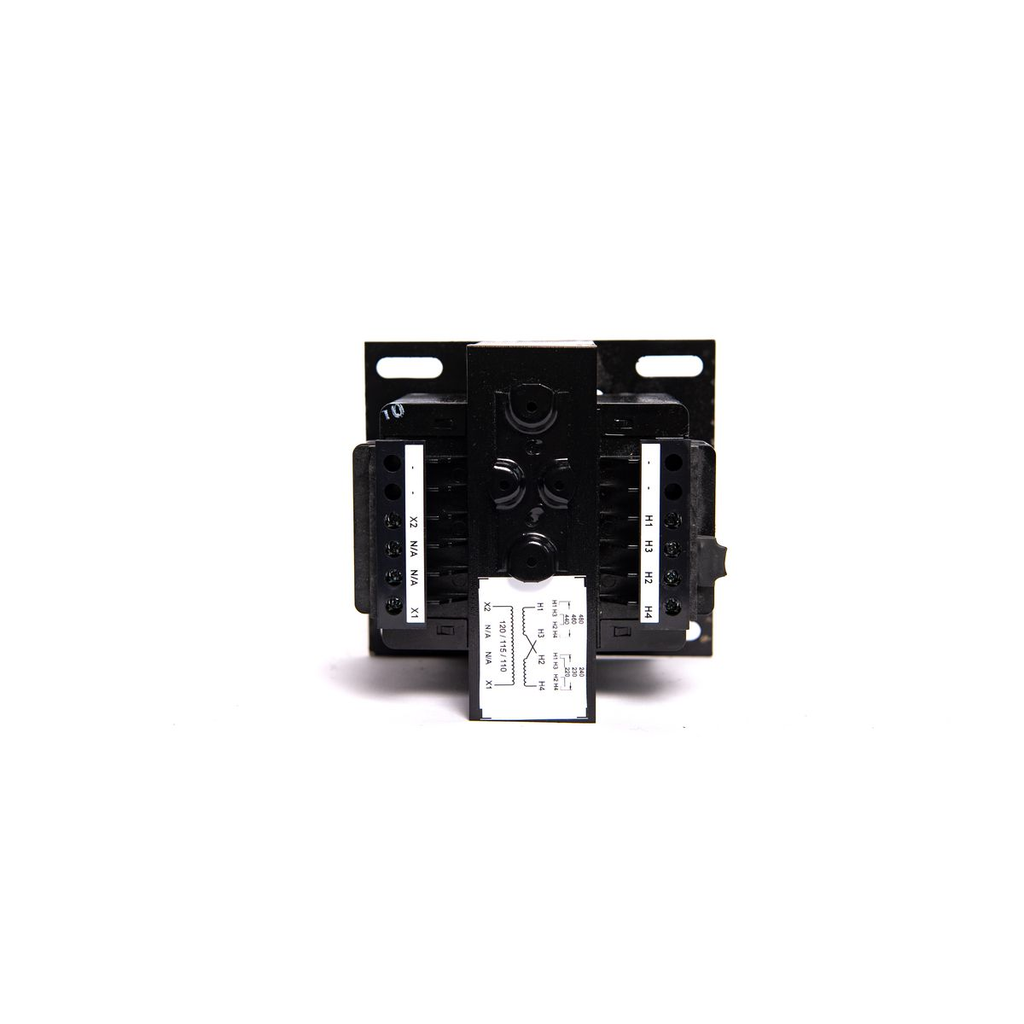

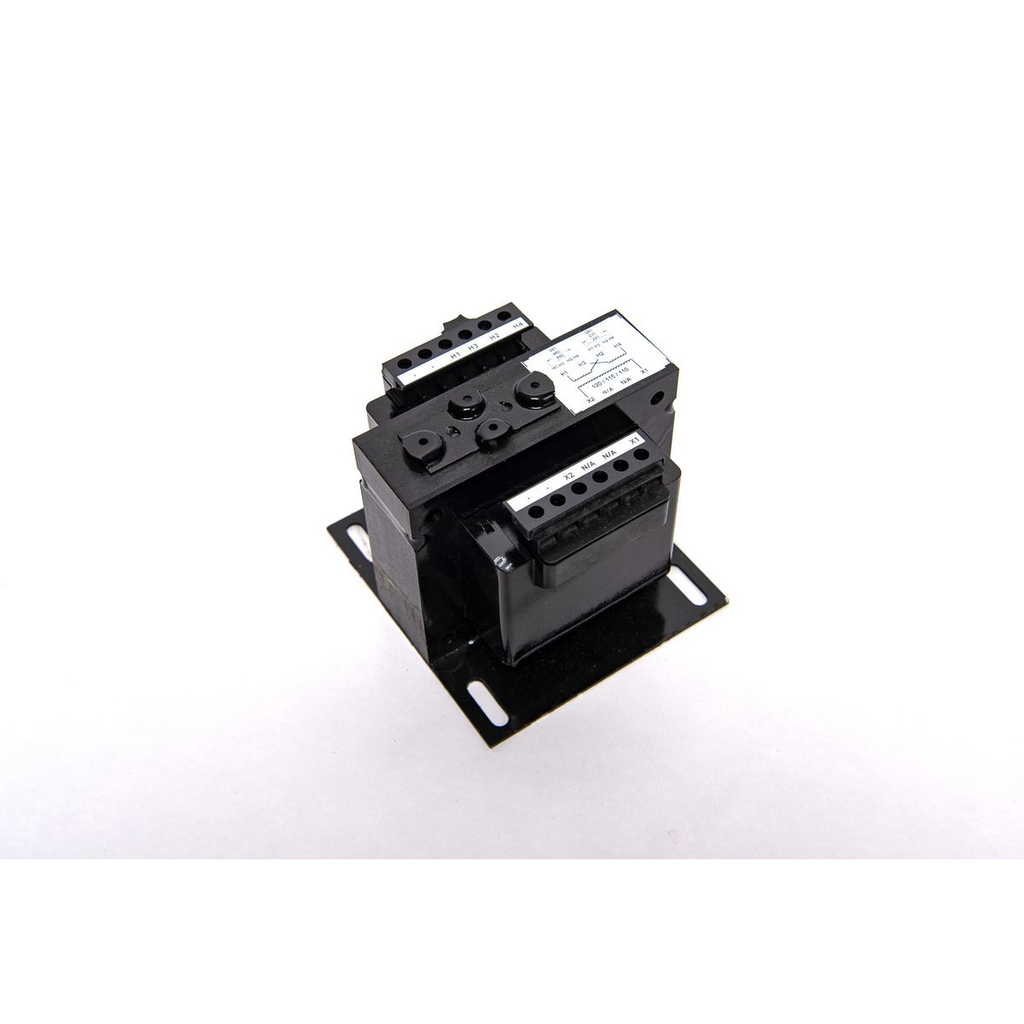

Acme TB150N014 Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts

Product Description

The ACME TB150N014 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized. Its encapsulated design protects the core and coil assembly from contaminants. This dry-type, step-down transformer isolates the secondary control circuit from the primary line circuit, ensuring safety.

• Encapsulated design protects against contaminants
• Constructed with high-quality silicon steel lamination
• Integrally molded terminal blocks prevent arc over

Product Highlights

This transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB150N014
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB150N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• UPC: 047503011980
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer Part Number: TB150N014
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 150 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Brand: ACME
• Width (in): 6.5
