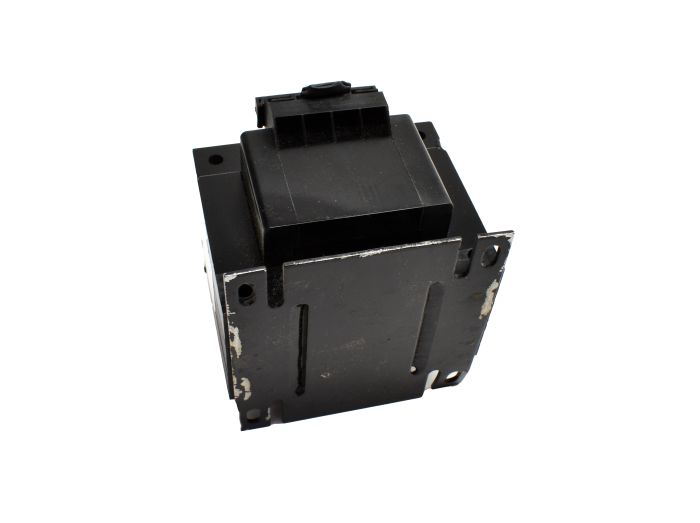

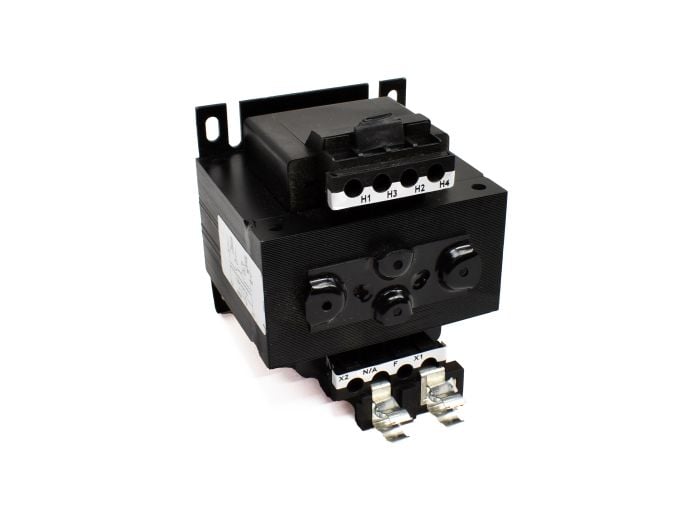

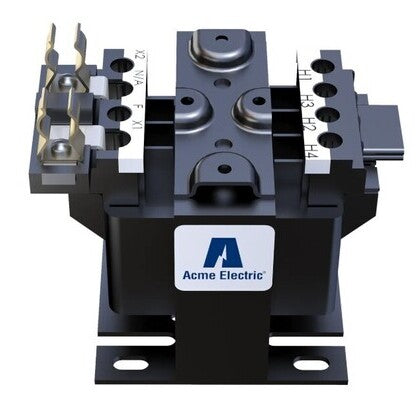

Acme TB150N008F0 Industrial Control Transformer 0.150KVA 240X480-120 F0

Product Description

The ACME TB150N008F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Its windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. It is a dry-type, step-down transformer with a secondary control circuit isolated from the primary line circuit for safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB150N008F0
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB150N008F0
• kVA: 0.150
• Secondary Voltage - Winding: 120 V
• UPC: 047503010730
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240x480
• Certified Listed: UL Listed cUL Listed
• Height: 4.668 Inch
• Length: 4.272 Inch
• Width: 3.75 in
• Manufacturer Part Number: TB150N008F0
• Manufacturer: Acme Electric
• Product Series: TB
• Description: ICT .150KVA 240X480-120 F0
• Phase: 1
• Type: Control
• VA Rating: 150 VA
• Secondary Voltage: 110 V, 115 V, 120 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 6.52 lbs
• Volt Amps: 150
• Volts, Primary: 240 x 480 V
• Volts, Secondary: 120 V
• Brand: Acme Electric Corporation
• Series: TB Series
• Connection type: Integrally Molded Terminal Block
