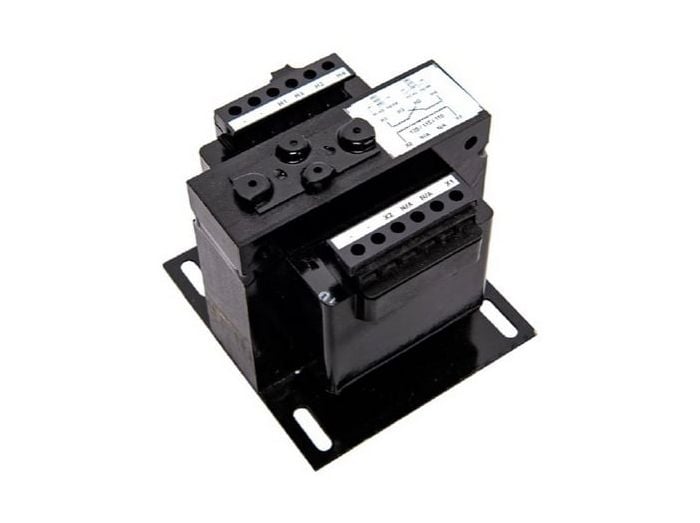

Acme TB150N007 Industrial Control Transformer 208/500, 220/380/440/550, 230/400/460/575, 240/416/480/600

Product Description

The ACME TB150N007 is an industrial control transformer designed to provide a low and safe control voltage for operating electromagnetic devices. These include motor starters, contactors, solenoids, and timers. It is designed to accommodate the momentary current inrush caused when electromagnetic components are energized.

• Provides a low and safe control voltage
• Suitable for motor starters, contactors, solenoids, and timers
• Designed to accommodate momentary current inrush

Product Highlights

The ACME TB150N007 ensures reliable operation of electromagnetic components with excellent secondary circuit voltage regulation.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB150N007
• Country of Origin: MEX

Technical Specifications

• Brand: Acme Electric
• Manufacturer Part Number: TB150N007
• UPC: 047503010396
• Manufacturer: Acme Electric
• Model: TB150N007
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 208/500,220/380/440/550,230/400/460/575,240/416/480/600 Primary Volts - 85/100/110,91/110/120,95/115/125,99/120/130 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 150 VA
• Primary Voltage: 208 V, 220 V, 230 V, 240 V, 380 V, 400 V, 416 V, 440 V, 460 V, 480 V, 500 V, 550 V, 575 V, 600 V
• Secondary Voltage: 100 V, 110 V, 115 V, 120 V, 125 V, 130 V, 85 V, 91 V, 95 V, 99 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 0 lbs
• Gross Weight: 11 lbs
• Part Number #: TB150N007
• SKU #: 2390079
• UNSPSC: 39121026
• Manufacture: HUBBELL ACME ELECTRIC
• Mfr Catalog Number: TB150N007
• Wattage: 150
• Product UPC: 04750301039
• Product Category: Encapsulated Control Tran
• Commodity Code: 3922
• Country of Origin: MX
• Unique Product Key: 291061
• PC ID: 291061
• PC W ALT DESC: 0.15KVA TFM
• PC W ALT DESC ONELINE: 0.15KVA TFM
• PC W BUY LINE: ACME
• PC W COMMODITY CODE: 3922
• PC W DESC: ACME TB150N007 0.15KVA TFM
• PC W ID: 291061
• PC W STK STATUS NUM: 2
• Package Qty: 1.0000
• Base Unit of Measure: EA
• BOX SIZE: 7.000×8.000×7.000 (in)
• Carton – SCC-14 Next Lower Level Sub Pack: 00047503010396
• Certified Listed: UL Listed;cUL Listed
• Class Code: D10
• Construction: Encapsulated
• Each – Width: 7.000 in
• Freight Class Code: 06342001
• Frequency Rating: 50/60 Hz
• Harmonization Code: 8504314065
• Image Actual Or Representative: A
• Pallet Height: 19.000 in
• Pallet Length: 36.000 in
• Pallet Weight: 366.000 lb.
• Pallet Width: 30.000 in
• Standard: UL Listed;cUL Listed
• Sub Class Code: D10D150
• Width: 7.000 in
