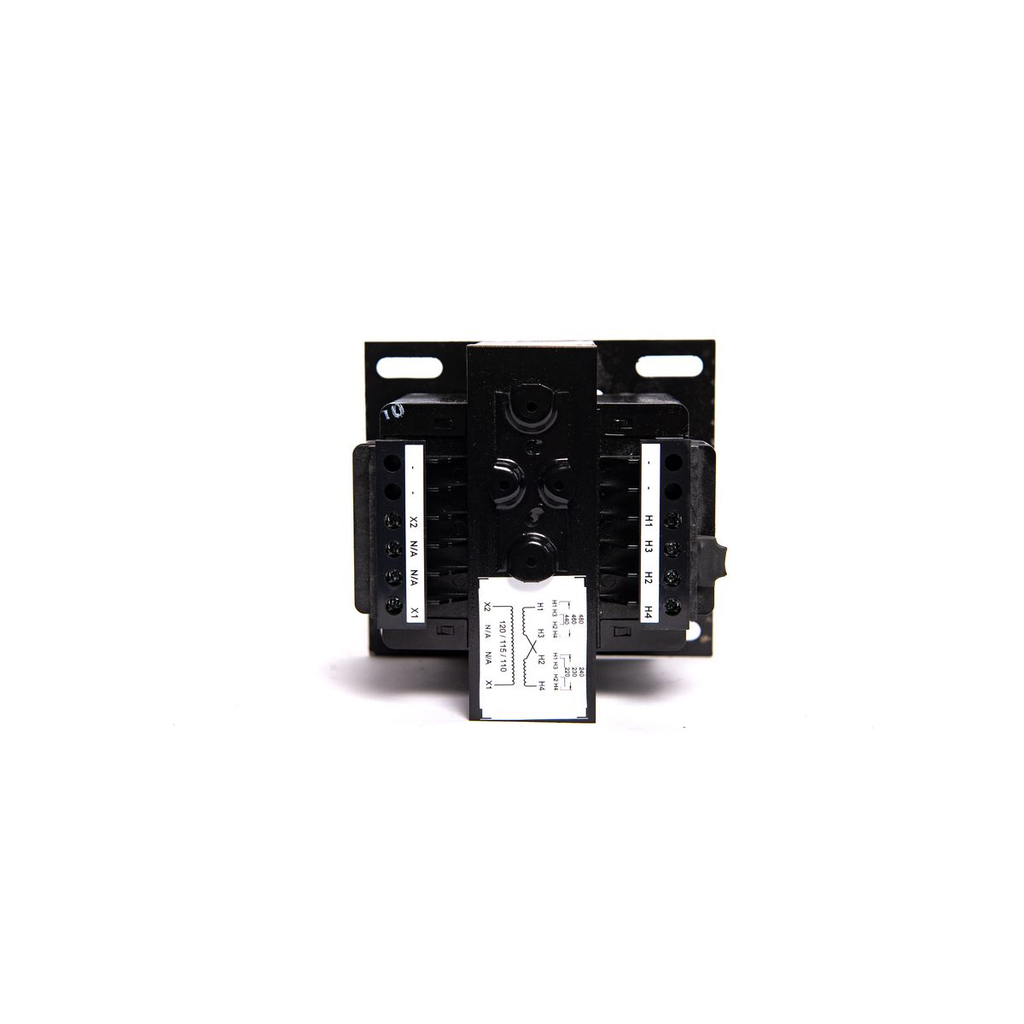

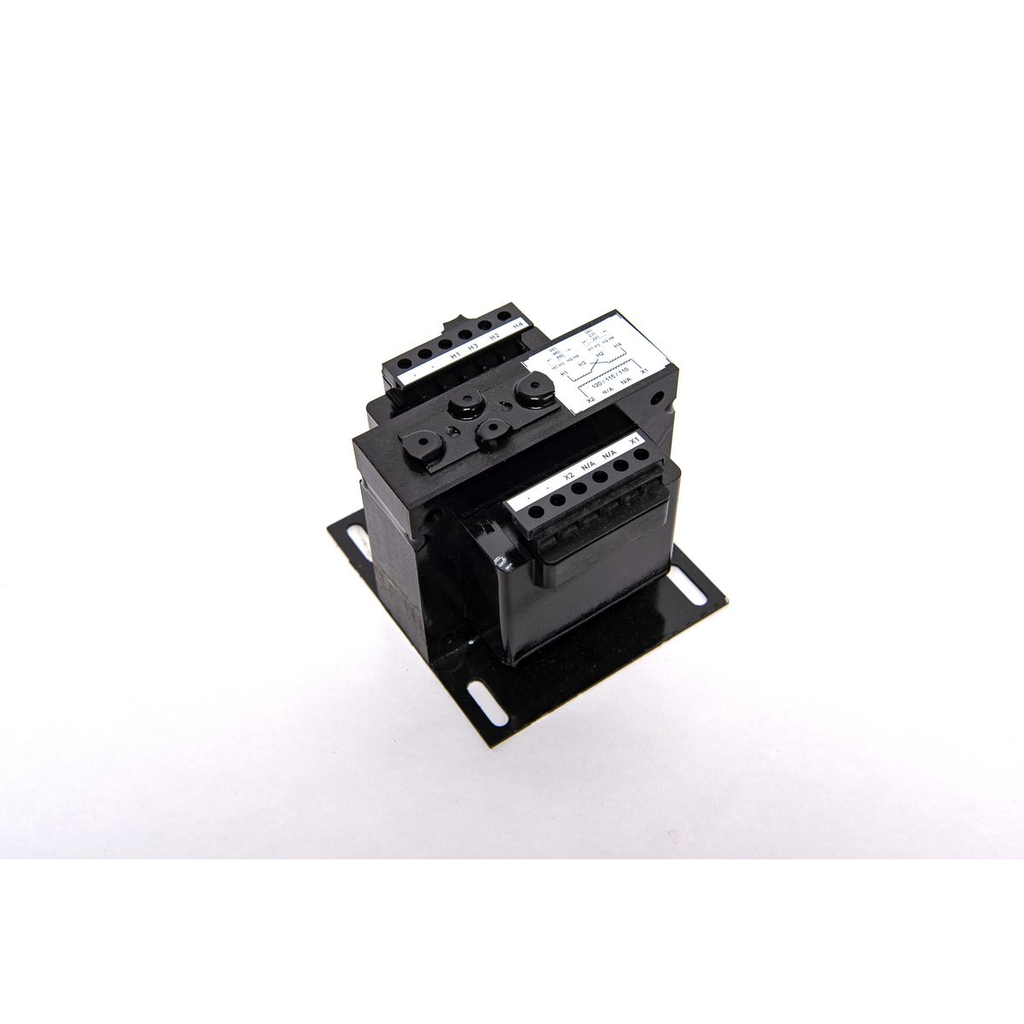

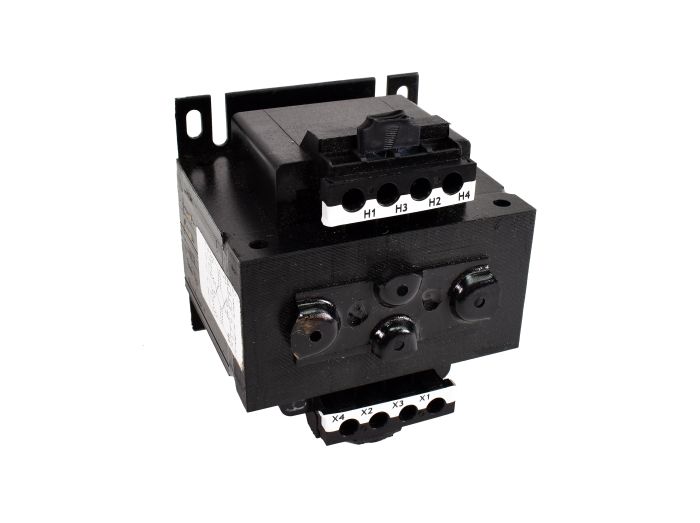

Acme TB150N001 Industrial Control Transformer 120x240-12/24

Product Description

The ACME TB150N001 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. It is a dry-type, step-down transformer with a secondary control circuit isolated from the primary line circuit, ensuring safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer features primary voltage of 120 X 240 V and secondary voltage of 12/24 V. It has integrally molded terminal blocks and a heavy gauge steel mounting plate.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB150N001
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB150N001
• Construction: Encapsulated
• Secondary Voltage - Winding: 12/24 V
• UPC: 047503008584
• Frequency Rating: 50/60 Hz
• Primary Voltage: 120 X 240 V
• Manufacturer Part Number: TB150N001
• Manufacturer: Acme Electric
• Product Series: TB
• Description: Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 150 VA
• Secondary Voltage: 12 V, 24 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 6.33 lbs
• Gross Weight: 7 lbs
• Brand: Acme Electric Company
• GTiN: 00047503008584
• Product UPC: 04750300858
• Width: 7.0 in
• UNSPSC Code: 39120000
• Unit of Measure: EA
