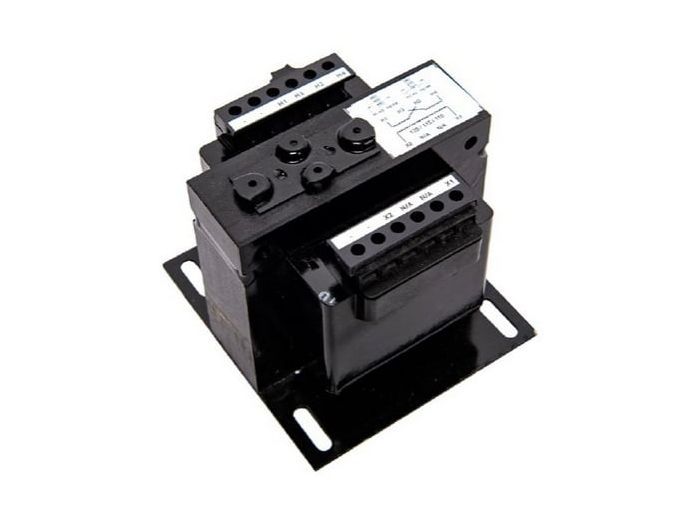

Acme TB1500N014 Industrial Control Transformer 1.5KVA 240X480 Primary Volts - 120X240 Secondary Volts

Product Description

The ACME TB1500N014 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. It is constructed with silicon steel lamination to minimize core losses and increase efficiency.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB1500N014

Technical Specifications

• Catalog Number: TB1500N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• UPC: 047503012062
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed, cUL Listed
• Brand: Acme Electric Corporation
• Series: TB Series
• Connection type: Integrally Molded Terminal Block
• Phase: 1
• Type: Control
• VA Rating: 1,500 VA
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
