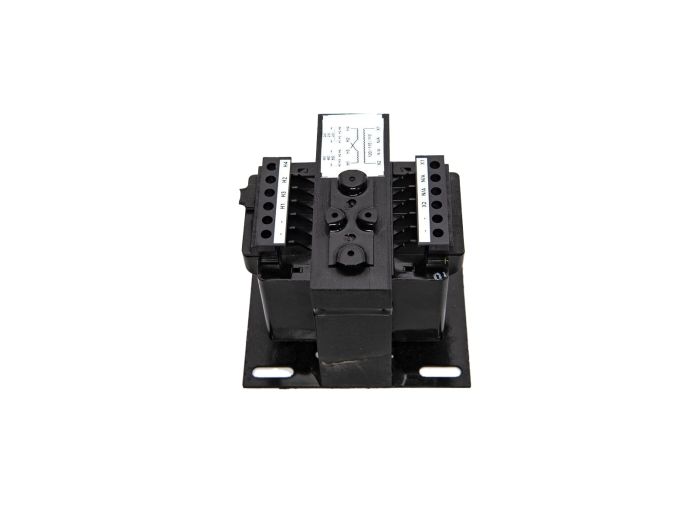

Acme TB100N014 Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts

Product Description

The ACME TB100N014 Industrial Control Transformer is designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability. The transformer's windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and dirt. These are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N014

Technical Specifications

• Application: Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
• Catalog Number: TB100N014
• Construction: Encapsulated
• Secondary Voltage - Winding: 120X240 V
• UPC: 047503011973
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer Part Number: TB100N014
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 240X480 Primary Volts - 120X240 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 3.93 lbs
• Gross Weight: 5 lbs
• Power Rating: 100 VA
• Power Source: N/A
• Custom Bundle: No
• Item Length: 8.300
• Battery Size: N/A
• Depth: 6.800
• Number of Batteries: N/A
• Battery Life: N/A
• Item Height: 7.000
• Voltage: N/A
• Motor Type: N/A
• Features: Control Transformer, Input Voltage - Transformer 240V AC, 480V AC
• Cable Length: N/A
• Width: 6.800
• Item Width: 6.800
• Battery Included: No
• Bundle Description: No
• Color: N/A
• Weight: 4.7000
• California Prop 65 Warning: N
• Brand: ACME ELECTRIC
• Battery Capacity: N/A
• Length: 8.300
