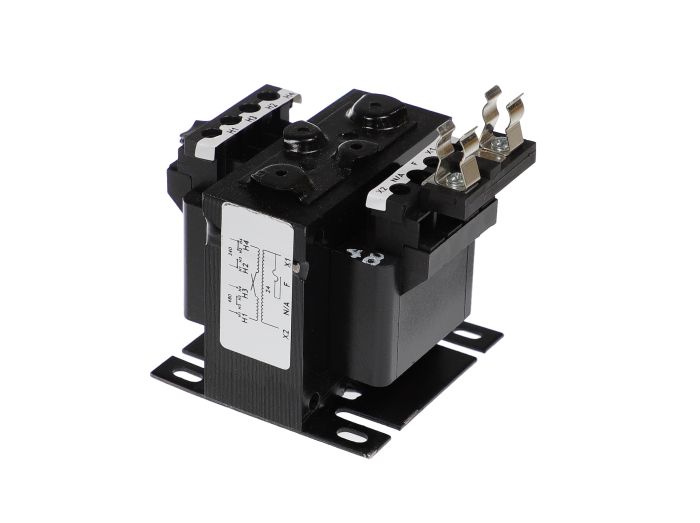

Acme TB100N013F0 Industrial Control Transformer 240x480 Primary Volts - 24 Secondary Volts

Product Description

The ACME TB100N013F0 industrial control transformer is designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability. Its windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. These dry-type, step-down transformers isolate the secondary control circuit from the primary line for safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed for use in motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N013F0

Technical Specifications

• Catalog Number: TB100N013F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 24 V
• UPC: 047503011638
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Manufacturer Part Number: TB100N013F0
• Manufacturer: Acme Electric
• Product Series: TB
• Description: Industrial Control Transformer 240X480 Primary Volts - 24 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 24 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 4.03 lbs
• Gross Weight: 5 lbs
• Certified Listed: UL Listed, cUL Listed
