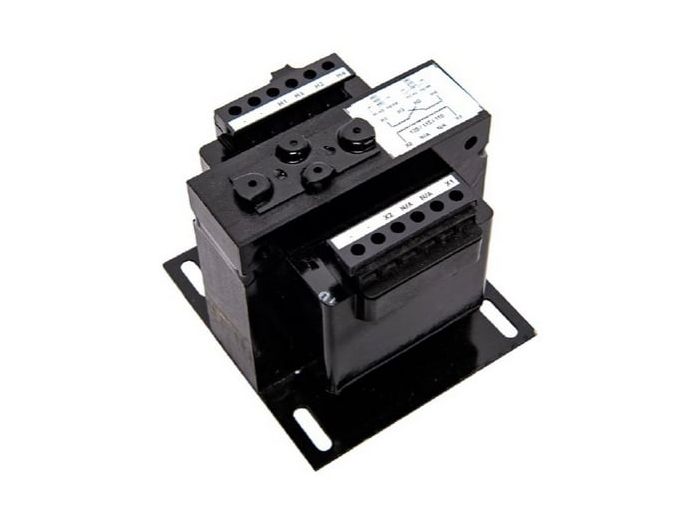

Acme TB100N011F0 Industrial Control Transformer .100KVA 230,460,575 - 95,115

Product Description

The ACME TB100N011F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Its windings and internal terminations are encased in a thermoplastic end cap, protecting them from contaminants. These dry-type, step-down transformers isolate the secondary control circuit from the primary line circuit, ensuring safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer is UL and cUL Listed and meets or exceeds UL, CSA, NEMA, ANSI, and OSHA standards. It also comes with a twenty-year limited warranty.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N011F0
• Country of Origin: MX

Technical Specifications

• Catalog Number: TB100N011F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 95, 115 V
• UPC: 047503017968
• Frequency Rating: 50/60 Hz
• Primary Voltage: 230/460/575 V
• Manufacturer Part Number: TB100N011F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 230,460,575 Primary Volts - 95,115 Secondary Volts
• Phase: 3
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 100 V, 120 V
• Cover Included: Yes
• Temperature Rise (F): 131 °F
• Approvals: CSA, UL
• Net Weight: 0 lbs
• Gross Weight: 8 lbs
• Item: Control Transformer
• Certified Listed: Ul Listed
• Depth: 3 1/25"
• Enclosure Finish: Epoxy Resin Varnish
• Enclosure Style: Open
• Height: 4 1/2"
• Input Voltage: 240/480/600V AC
• Mounting: Foot, Plate
• Output Voltage: 100/120V AC
• Pallet Quantity: 32
• Temp. Rise: Not Rated
• Width: 3.38"
• MODEL: TB100N011F0
• BRAND: ACME
• SKU: 5976979
• WEIGHT: 4.200 lb
• UOM: each
