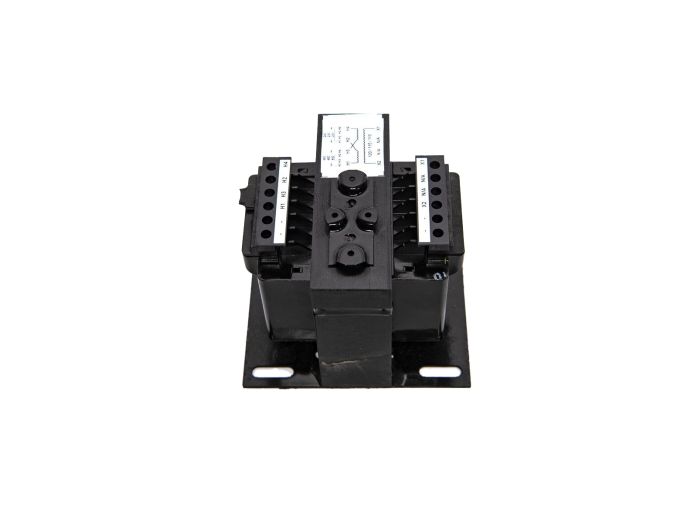

Acme TB100N008F0 Industrial Control Transformer 0.100KVA 240X480-120 F0

Product Description

The ACME TB100N008F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. These dry-type, step-down transformers assure safety with a secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed for reliable control circuit power, this transformer features molded terminals and rugged protection for use in motor starters, contactors, and control panels.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N008F0
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB100N008F0
• kVA: 0.100
• Secondary Voltage - Winding: 120 V
• UPC: 047503010723
• Height: 4.356 in
• Length: 3.778 in
• Width: 3.375 in
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• UNSPSC Code: 39120000
• Brand: Acme Electric Corporation
• Manufacturer Part Number: TB100N008F0
• Unit of Measure: EA
• Category: Control Transformer
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: ICT .100KVA 240X480-120 F0
• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 110 V, 115 V, 120 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
