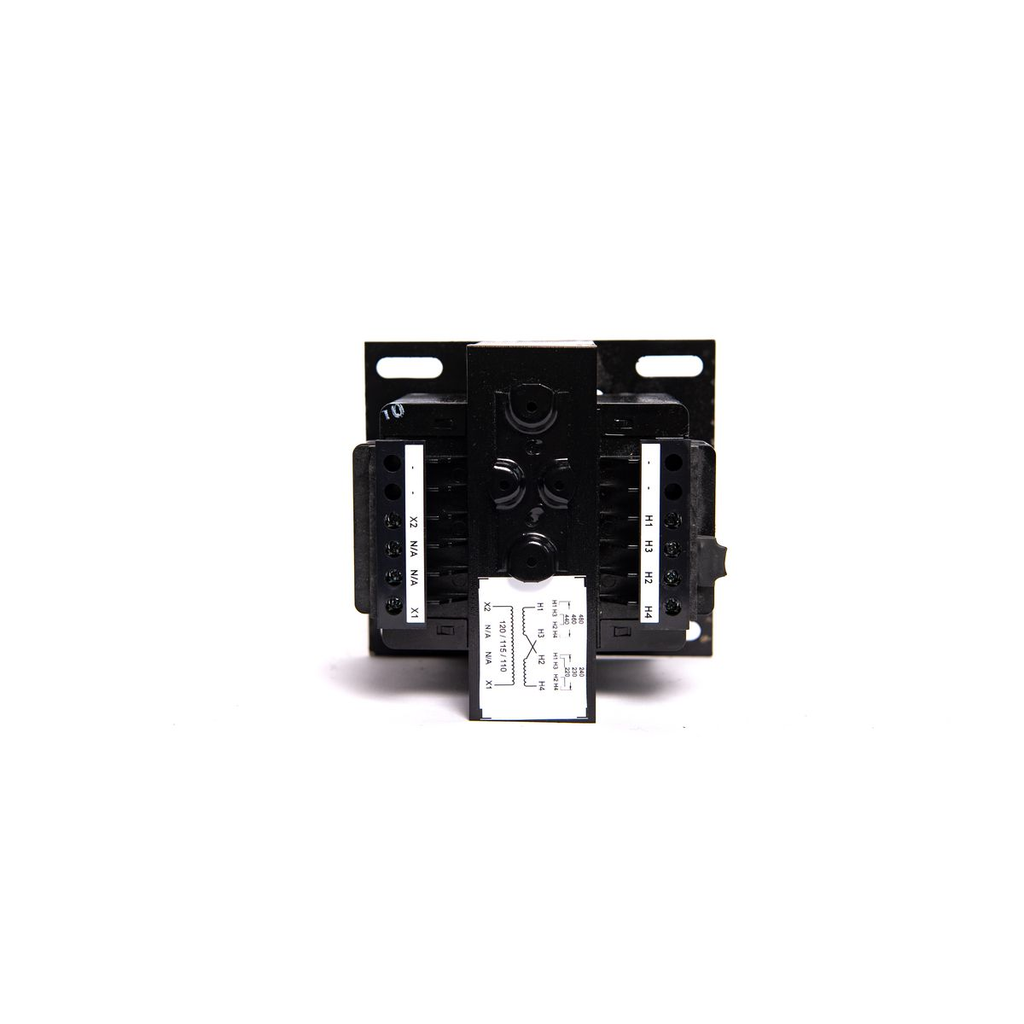

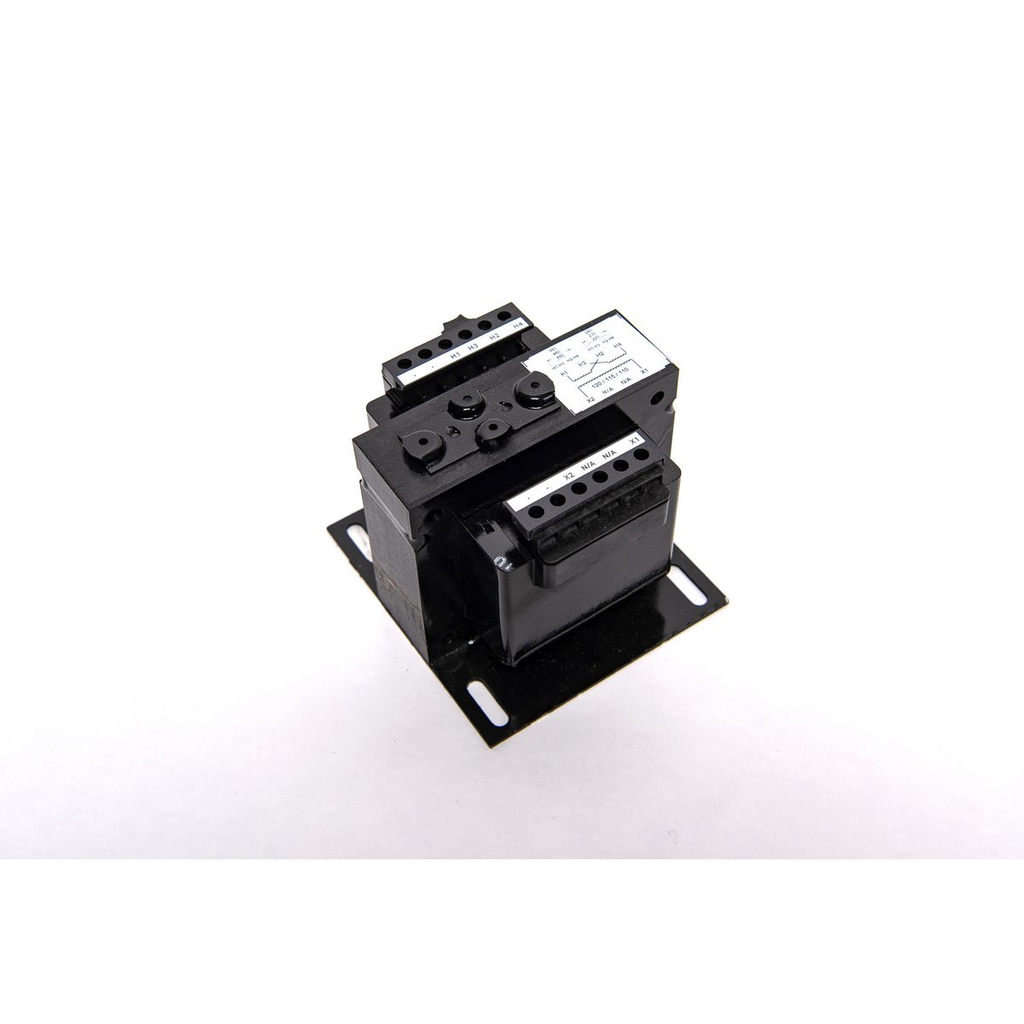

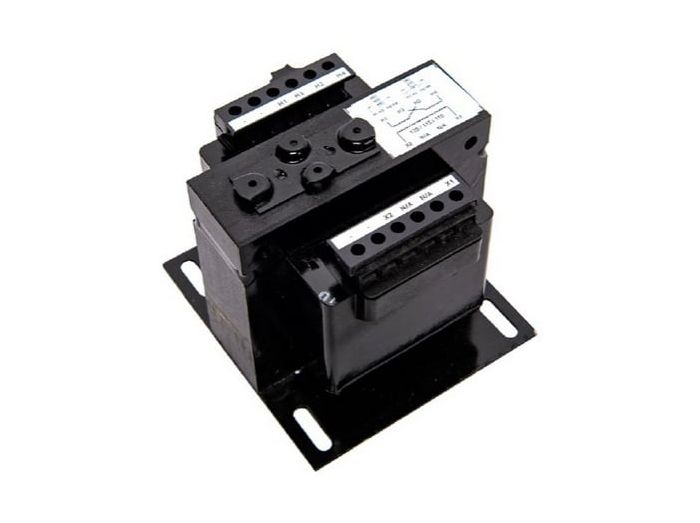

Acme TB100N006F0 Industrial Control Transformer 208,277 Primary Volts - 120 Secondary Volts

Product Description

The ACME TB100N006F0 industrial control transformer is designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability. The transformer's windings and internal terminations are encased in a thermoplastic end cap, protecting them from contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N006F0
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB100N006F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 120 V
• UPC: 047503010020
• Frequency Rating: 50/60 Hz
• Primary Voltage: 208/277 V
• Certified Listed: UL Listed cUL Listed
• Manufacturer Part Number: TB100N006F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 208,277 Primary Volts - 120 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 120 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Brand: Acme Electric
