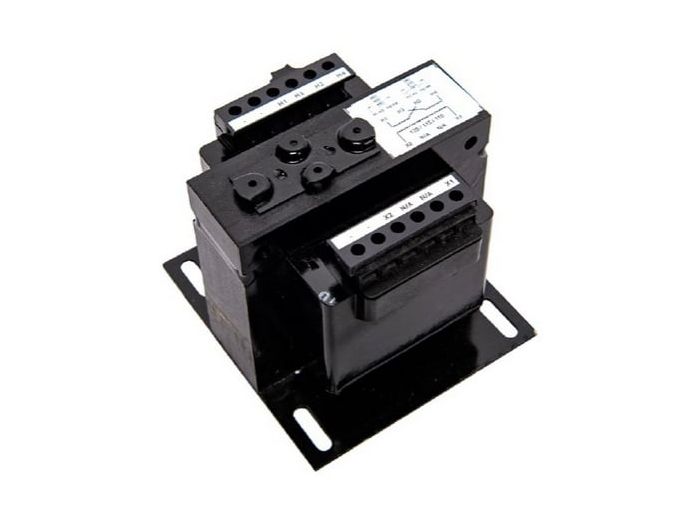

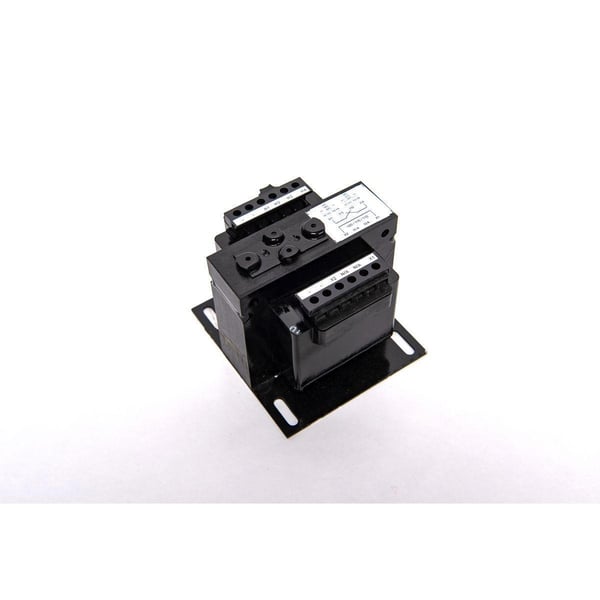

Acme TB100N005F0 Industrial Control Transformer 100 VA

Product Description

The ACME TB100N005F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. These dry-type, step-down transformers assure maximum safety with a secondary control circuit isolated from the primary line circuit.

• 208,230,460 Primary Volts -115 Secondary Volts
• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency

Product Highlights

This industrial control transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N005F0
• Country of Origin: United States

Technical Specifications

• Catalog Number: TB100N005F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 115 V
• UPC: 047503009383
• Frequency Rating: 50/60 Hz
• Primary Voltage: 208/230/460 V
• Certified Listed: UL Listed, cUL Listed
• Manufacturer Part Number: TB100N005F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Secondary Voltage: 115 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Power Rating: 100 VA
• Enclosure Type: Open
• Housing Material: Silicon Steel
• Temperature Rating: 80 deg C
• Insulation: 130 deg C
• Connection Type: Integrally Molded Terminal Block
• Brand: ACME
• Model: TB100N005F0
• Country of Origin: United States
