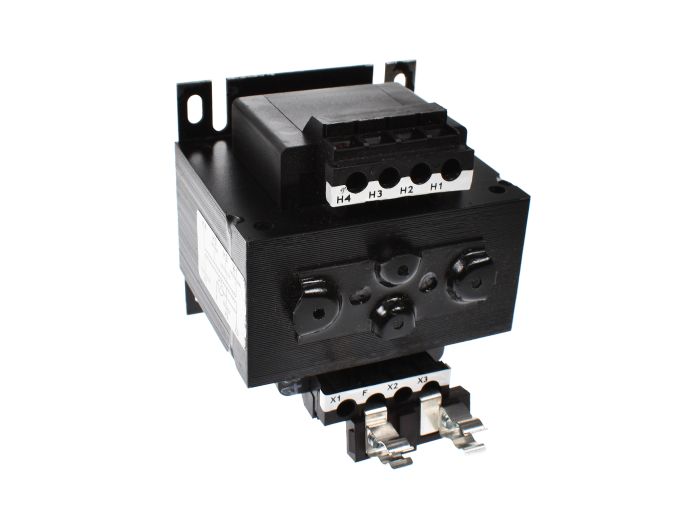

Acme TB100N004F0 Industrial Control Transformer 100VA

Product Description

The ACME TB100N004F0 is an industrial control transformer designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Its windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. This dry-type, step-down transformer isolates the secondary control circuit from the primary line circuit.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

Designed for motor starters, contactors, relays, and control panels. Voltage regulation exceeds NEMA requirements. UL and cUL Listed.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB100N004F0
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: TB100N004F0
• Construction: Encapsulated
• Secondary Voltage - Winding: 23,24,25/110,115,120 V
• UPC: 047503008867
• Frequency Rating: 50/60 Hz
• Primary Voltage: 200, 208/220, 230, 240/440, 460, 480 V
• Certified Listed: UL Listed, cUL Listed
• Brand: Acme Electric Corporation
• Manufacturer Part Number: TB100N004F0
• VA Rating: 100 VA
• Phase: 1
• Type: Control
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 6.555 lbs
• Gross Weight: 8 lbs
