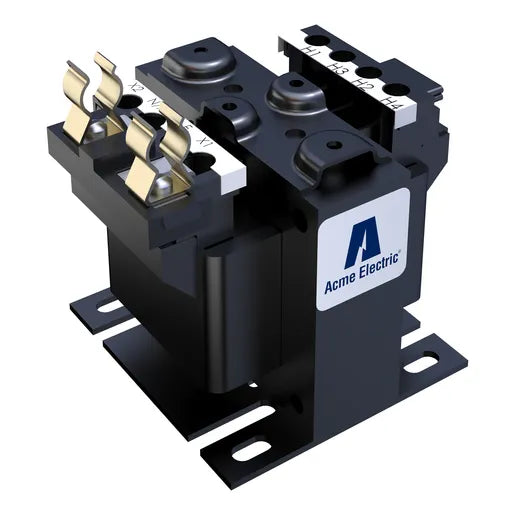

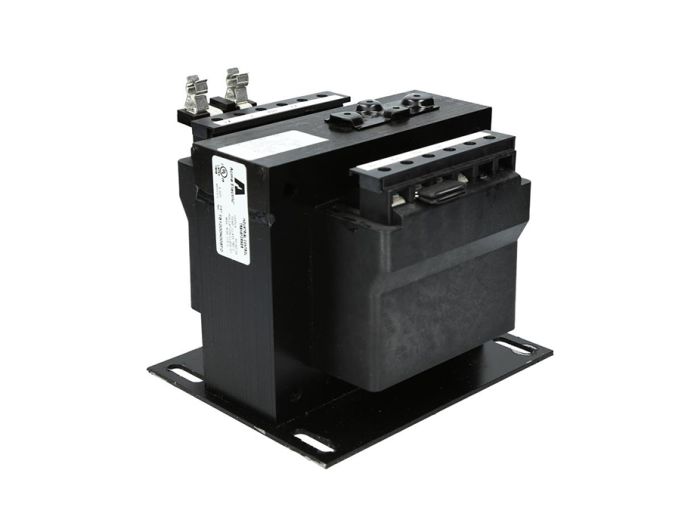

Acme TB1000N008F0 Industrial Control Transformer 1KVA 240X480-120 F0

Product Description

The ACME TB1000N008F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized, without sacrificing secondary voltage stability. Windings and internal terminations are encased in a thermoplastic end cap, protecting them from moisture and contaminants. It is a dry-type, step-down transformer with the secondary control circuit isolated from the primary line circuit for safety.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This industrial control transformer is designed for use in motor starters, contactors, solenoids, timer circuits, relays, control panels and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB1000N008F0
• Country of Origin: MX

Technical Specifications

• Application: Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized...without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
• Catalog Number: TB1000N008F0
• Color: Black
• kVA: 1
• Secondary Voltage: 120 V
• UPC: 047503010808
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 X 480 V
• Certified Listed: UL Listed cUL Listed
• Series: TB Series
• Connection type: Integrally Molded Terminal Block
• Manufacturer Name: Acme Industrial Company
• UNSPSC: 39121026
• Manufacturer Part Number: TB1000N008F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: ICT 1KVA 240X480-120 F0
• Phase: 1
• Type: Control
• VA Rating: 1,000 VA
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Net Weight: 26.69 lbs
• Gross Weight: 27 lbs
• UNSPSC Code: 39120000
• Brand: Acme Electric Corporation
• Dimensions: 6.61 in H X 5.65 in D
