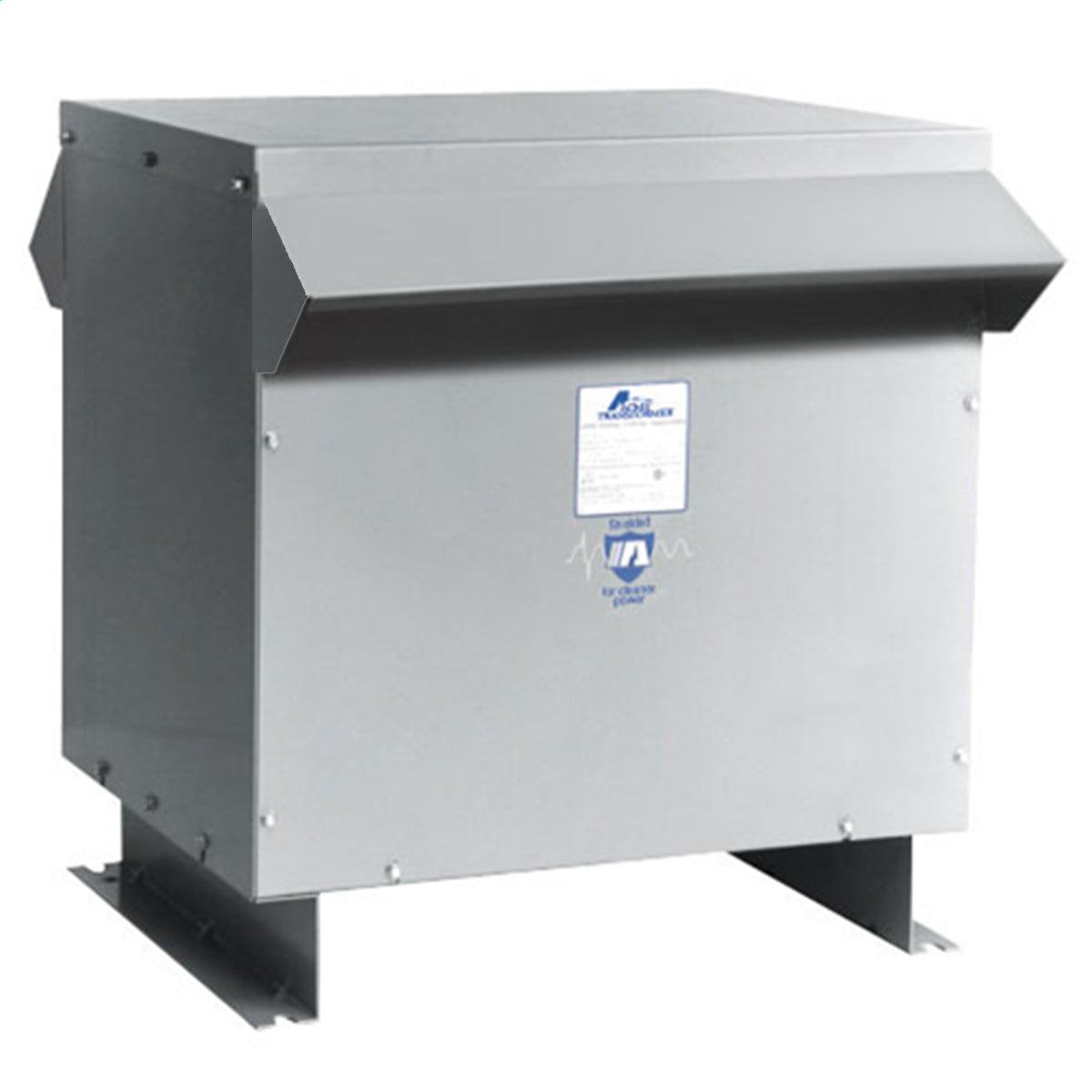

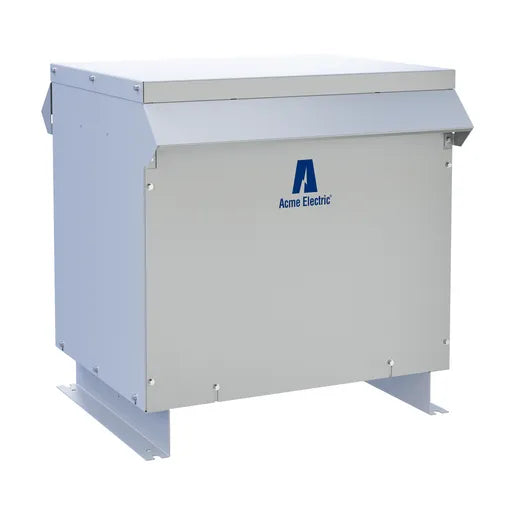

Acme T3075K0013B Low Voltage Distribution Transformer 75kVA

Product Description

The ACME T3075K0013B is a low voltage distribution transformer with three phases, 480 - 208Y/120V, and 75kVA. It operates quietly with sound levels below NEMA standards. Designed for floor mounting, it meets or exceeds U.S. DOE 10 CFR Part 431 regulations. The transformer features a ventilated construction and is suitable for industrial applications.

• Quiet operation with sound levels below NEMA standards
• Ventilated construction for efficient cooling
• Meets or exceeds U.S. DOE 10 CFR Part 431 regulations

Product Highlights

This ACME distribution transformer provides reliable and efficient power distribution for various industrial applications.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T3075K0013B
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T3075K0013B
• Construction: Ventilated
• kVA: 75
• Material Type: ZFIN
• Max Temperature Rise: 150 Degrees Celsius
• Mounting Type: Floor
• Primary Voltage: 480 Delta VAC
• Secondary Voltage: 208Y/120 VAC
• Taps % Steps: 2.5%
• UL Insulation Class: 220 C
• Winding Material: AL
• Efficiency: 98.60%
• Frequency Rating: 60 Hz
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• Frequency: 60 Hz
• Max Temperature: 150 degrees C
• Rating: NEMA 3R
• Standard: C22.2 No. 47,UL 1561
• Brand: Acme Electric
• Phase: 3 Phase
• Power Rating: 75 kVA
• Primary Type: Industrial Transformer
• Type: Distribution Transformer
• Application: Dry Type Distribution Transformer
• Cooling: Ventilated
• Country of Origin: MX
• Enclosure: NEMA 3R
• Enclosure Type: NEMA 3R
• Housing Material: Steel
• KVA Rating: 75
• Mounting: Floor
• Temperature Rating: 150 C
• UNSPSC: 39121001
• Winding: Aluminum
• UL Standard: UL 1561
• Width (in): 28.15
• ANFC Taps: 2
• BNFC Taps: 4
• Primary Voltage - Winding: 480
• Product Category: Dry Type Distribution Transformer
• Series: Toroids Series
• Connection Type: Lug Terminal
