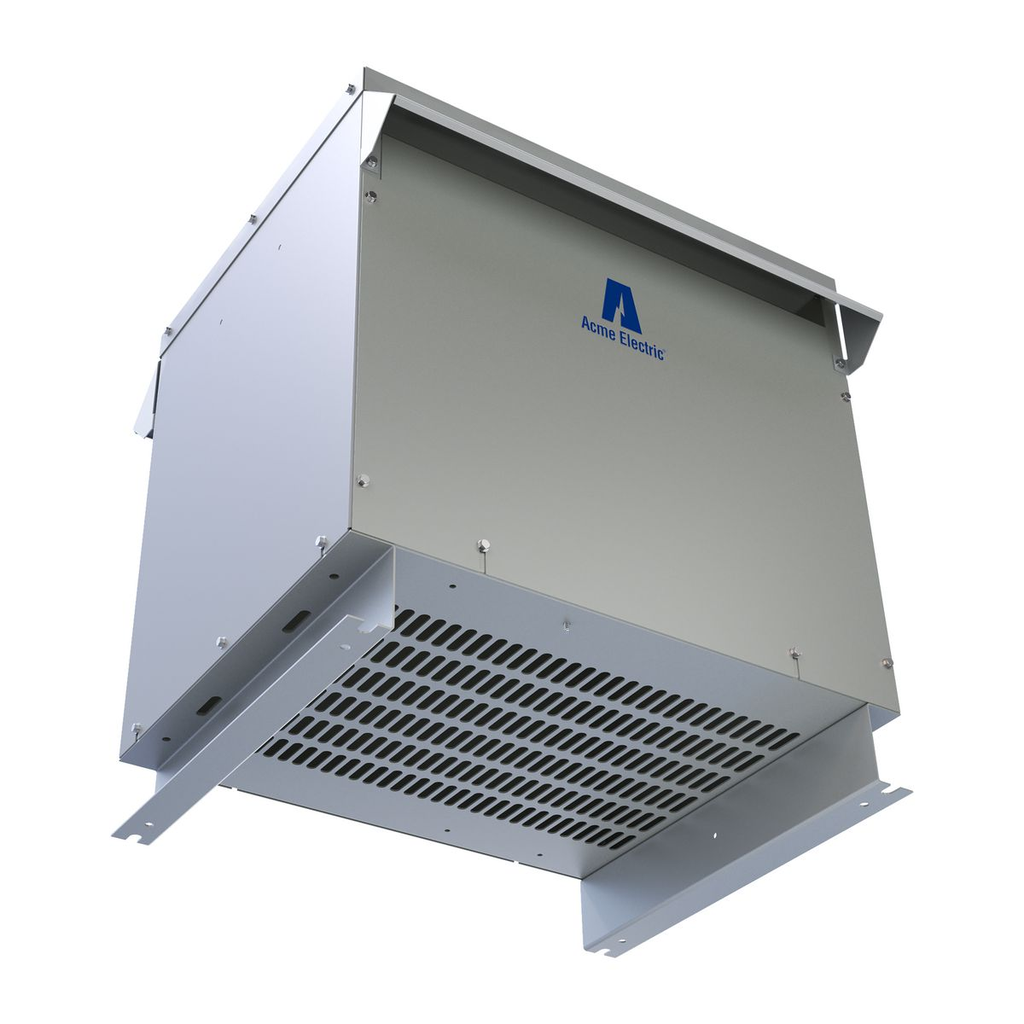

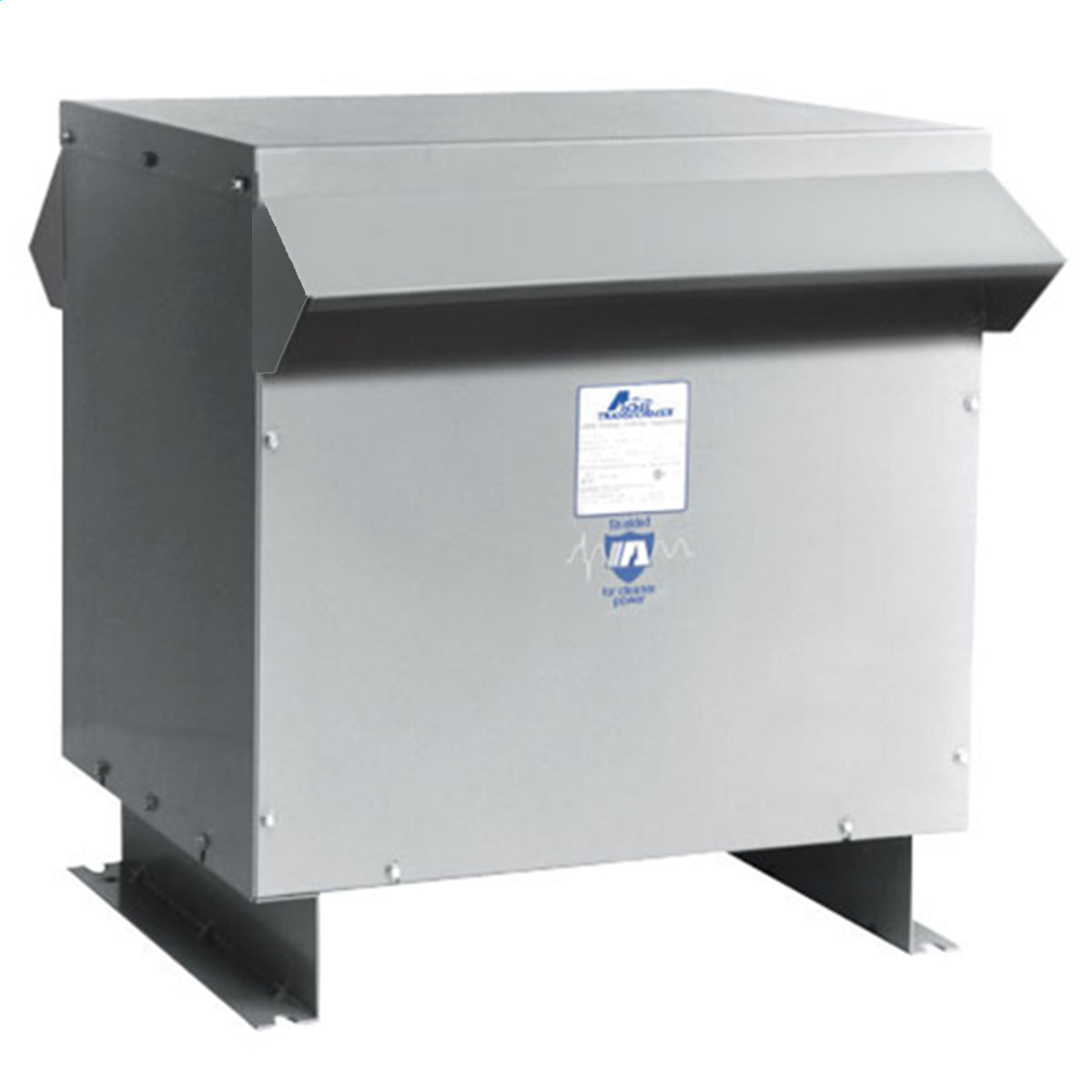

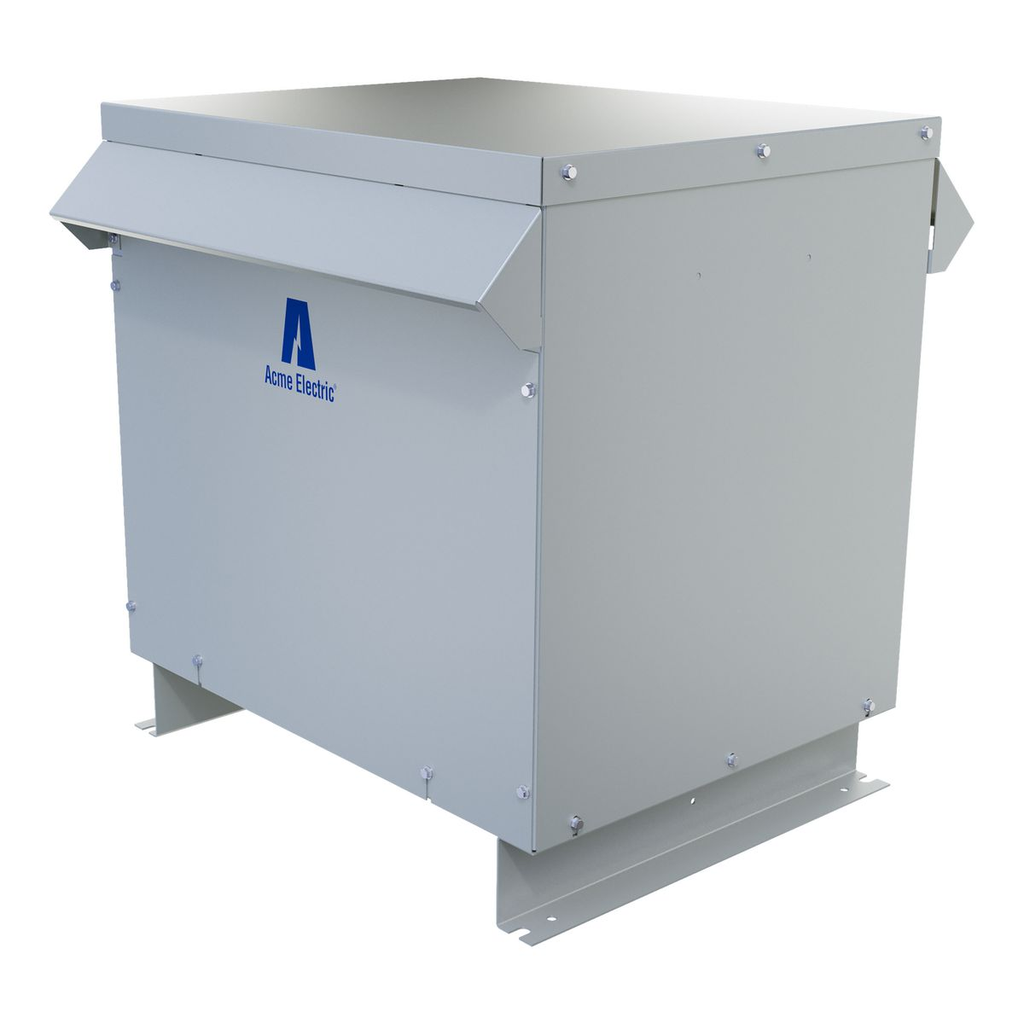

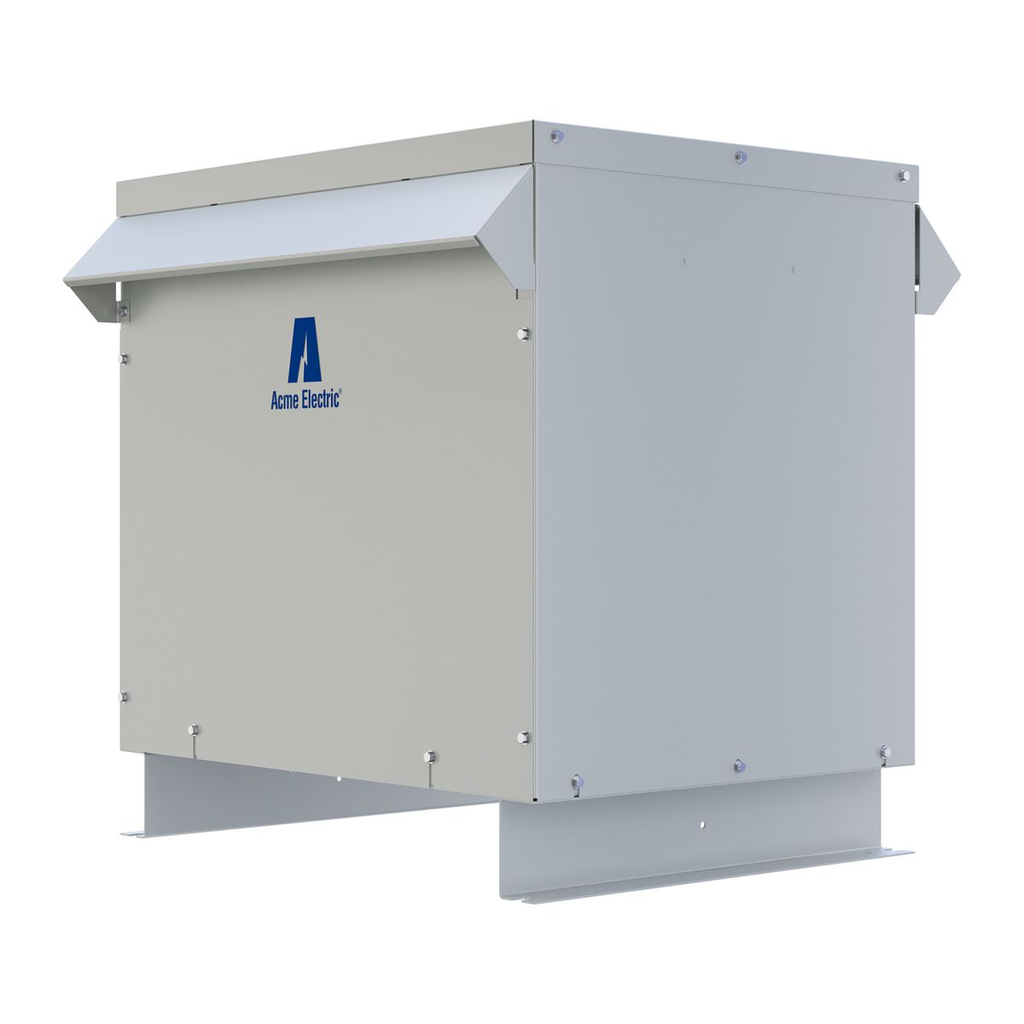

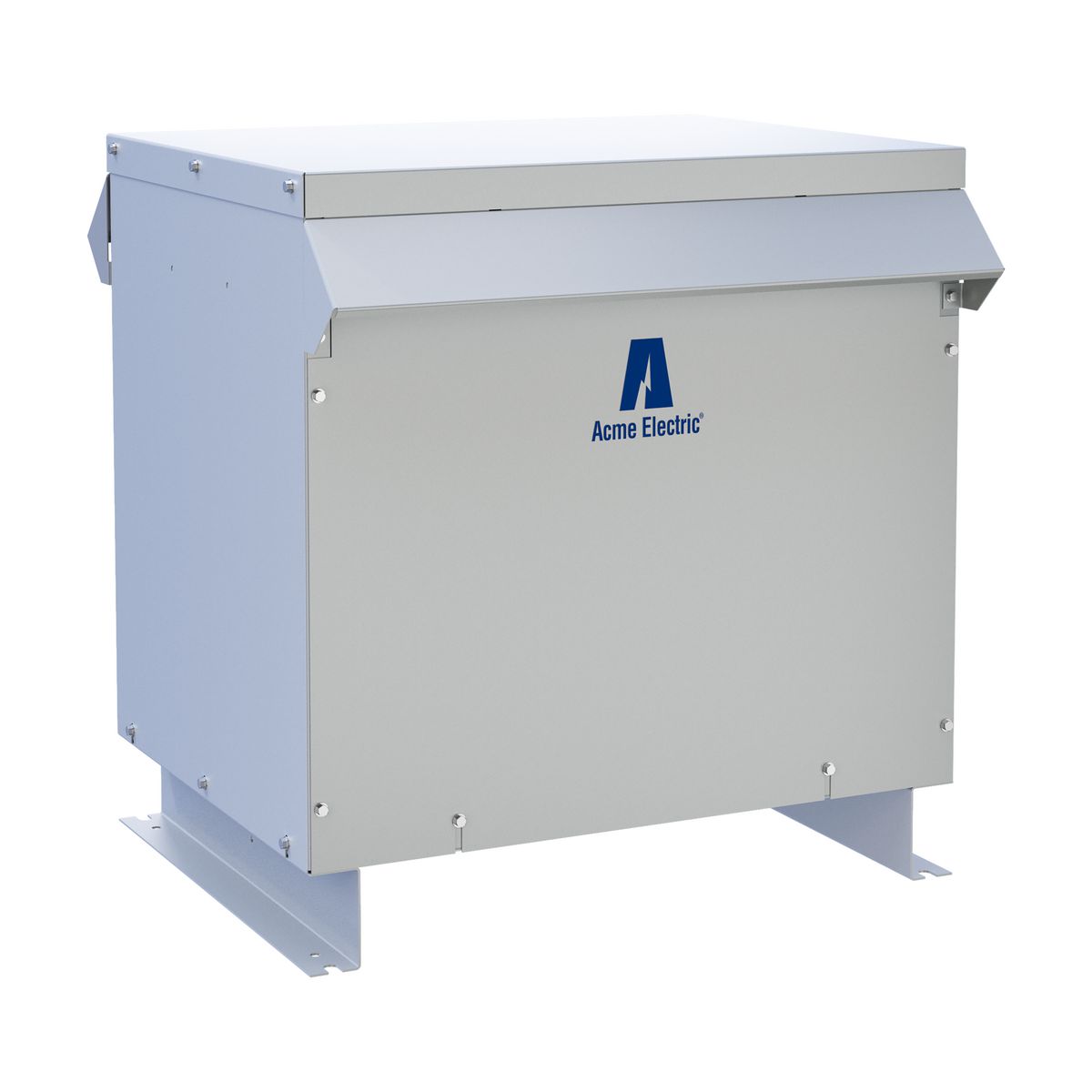

Acme T3045K0013B Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA

Brand: ACME
SKU: T3045K0013B
Availability: Out Of Stock
$4,576.69
$4,576.69
LTL Delivery

This product weighs 400 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ACME T3045K0013B is a low voltage distribution transformer with three phases, 480 - 208Y/120V, and 45kVA. It provides a low and safe control voltage for operating electromagnetic devices. It features quiet operation with sound levels below NEMA standards.

  • Quiet operation with sound levels below NEMA standards
  • Dry Type Distribution Transformer
  • Meet DOE 2016 efficiency requirements

Product Highlights

This transformer is ventilated to provide air circulation and is suitable for outdoor use with a NEMA 3R enclosure.

Product Information

Standard Information

  • Brand: ACME
  • Manufacturer Part Number: T3045K0013B
  • Country of Origin: MX
Technical Specifications
ANFC Taps
2
BNFC Taps
4
Catalog Number
T3045K0013B
Construction
Ventilated
kVA
45
Material Type
ZFIN
Max Temperature Rise
150 Degrees Celsius
Mounting Type
Floor
Primary Voltage - Winding
480Δ
Product Category
Dry Type Distribution Transformer
Secondary Voltage - Winding
208Y/120 V
Taps % Steps
2.5%
UL Insulation Class
220 C
UPC
047503091135
Winding Material
AL
Efficiency
98.40%
Frequency Rating
60 Hz
Primary Voltage
480 Delta VAC
CSA Standard
C22.2 No. 47
Dept of Energy Regulation
Meets or exceed U.S. DOE 10 CFR Part 431
Nema Rating
NEMA 3R
Brand
Acme Electric
Power Rating
45 kVA
Primary Type
Industrial Transformer
Series
Toroids Series
Type
Distribution Transformer
Application
Dry Type Distribution Transformer
ARRA Compliant
C
Buy American Compliant
C
Connection Type
Lug Terminal
Cooling
Ventilated
Country of Origin
MX
Currency
USD
Dimensions
25.5 in H x 24.39 in W x 19.37 in D
Enclosure
NEMA 3R
Enclosure Type
NEMA 3R
Gross Weight Per Pack
441.0000 lb
Gross Weight per Pack Metric
195.05
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8504330020
Height
25.50 in
Height [Metric]
64.7700 cm
Housing Material
Steel
KVA Rating
45
Length
19.37 in
Length [Metric]
49.1998 cm
Mounting
Floor
Returnable
Y
Standard
UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE
Standards
CSA CertifiedUL 1561UL File No. E12547C22.2 No. 47LR7357-32U.S. DOE 10 CFR Part 431PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Rating
150 C
UNSPSC
39121001
UPC 11
04750309113
UPC 12
047503091135
Width
24.39 in
Width [Metric]
61.9506 cm
Winding
Aluminum
Stock Status
NORMALLY STOCKED
Manufacturer
Acme Electric
Phase
3
Secondary Voltage
208Y/120 VAC
Volt Amps
45kVA
Max Temperature
150 degrees C
Rating
NEMA 3R
Sub Brand
Acme
