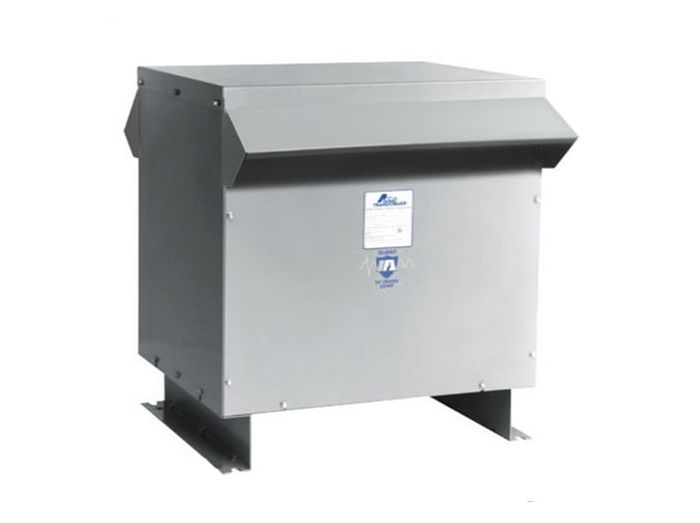

Acme T3015K0013B Low Voltage Distribution Transformer 15kVA

Product Description

The ACME T3015K0013B is a low voltage distribution transformer with three phases, operating at 480Δ - 208Y/120V and 15kVA. It features quiet operation with sound levels below NEMA standards. Ideal for industrial applications, this ventilated transformer meets or exceeds U.S. DOE 10 CFR Part 431 regulations.

• Buy America(n) Qualified
• Quiet operation with sound levels below NEMA standards
• Ventilated construction

Product Highlights

Low voltage distribution transformer with quiet operation and compliance with industry standards.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T3015K0013B

Technical Specifications

• Catalog Number: T3015K0013B
• Construction: Ventilated
• kVA: 15
• Material Type: ZFIN
• Max Temperature Rise: 150 Degrees Celsius
• Mounting Type: Floor
• Primary Voltage: 480D V
• Secondary Voltage: 120 V, 208 V
• Product Category: Dry Type Distribution Transformer
• Taps % Steps: 2.5%
• UL Insulation Class: 220 C
• Winding Material: AL
• Efficiency: 97.89%
• Frequency Rating: 60 Hz
• CSA Standard: C22.2 No. 47
• Dept of Energy Regulation: Meets or exceed U.S. DOE 10 CFR Part 431
• Nema Rating: NEMA 3R
• UL Standard: UL 1561
• Manufacturer Part Number: T3015K0013B
• Manufacturer: Acme Electric
• Family Series: Acme Electric Transformers
• Phase: 3
• Type: Dry Sealed
• VA Rating: 15,000 VA
• Enclosed: Yes
• Temperature Rise (F): 239 F
• Approvals: UL
• Manufacturer Name: Acme Industrial Company
• UNSPSC: 39121001
• Dimensions: 25.5 in H x 24.39 in W x 19.37 in L
• Power Rating: 15 kVA
• Primary Type: Industrial Transformer
• Series: Toroids Series
