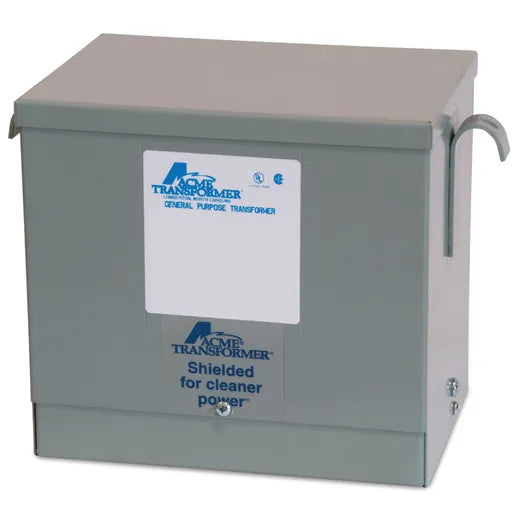

ACME Acme T2A533291S Low Voltage Distribution Transformer 6kVA
ACME Acme T2A533291S Low Voltage Distribution Transformer 6kVA

Acme T2A533291S Low Voltage Distribution Transformer 6kVA

Brand: ACME
SKU: T2A533291S
Availability: In Stock

Ships via freight in 1-3 business days
$1,996.03
$1,996.03
LTL Delivery

This product weighs 140 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ACME T2A533291S is a low voltage distribution transformer with three phases, operating at 480 - 240 120V and 6kVA. Designed for industrial and commercial applications, it features quiet operation and an electrostatic shield for enhanced protection. Encapsulated units are offered in ratings up to 15kVA.

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection
  • UL-3R enclosure meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards

Product Highlights

Designed for industrial and commercial applications. It features quiet operation and an electrostatic shield for enhanced protection.

Product Information

Standard Information

  • Brand: ACME
  • Manufacturer Part Number: T2A533291S
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
T2A533291S
Construction
Encapsulated
Electrostatic Shield
Shielded
kVA
6
Max Temperature Rise
115 Degrees Celsius
Mounting Type
Wall Mount
Primary Voltage
480D V
Secondary Voltage - Winding
240D 120 V
Taps % Steps
5.0%
UL Insulation Class
180 C
Winding Material
AL
Frequency Rating
60 Hz
CSA Standard
C22.2 No. 47
Nema Rating
NEMA 3R
UL Standard
UL 506
MODEL
T2A533291S
BRAND
ACME
Out of Package Height (in)
11.830
Out of Package Length/Depth (in)
8.820
Out of Package Weight (lbs)
140.000
Out of Package Width (in)
14.170
Power Rating
6 kVA
Conversion Function
Step-down
Number of Phases
3
Primary Voltage Rating (AC)
480 V
Secondary Voltage Rating (AC)
240 V
Type
Power Transformer
IP Rating
IP14
Maximum Operating Frequency
60 Hz
Item Length
8.82 in
Item Height
11.83 in
Item Width
14.17 in
Weight
140 lbs
Depth
8.82 in
Width
14.17 in
Length
8.82 in
