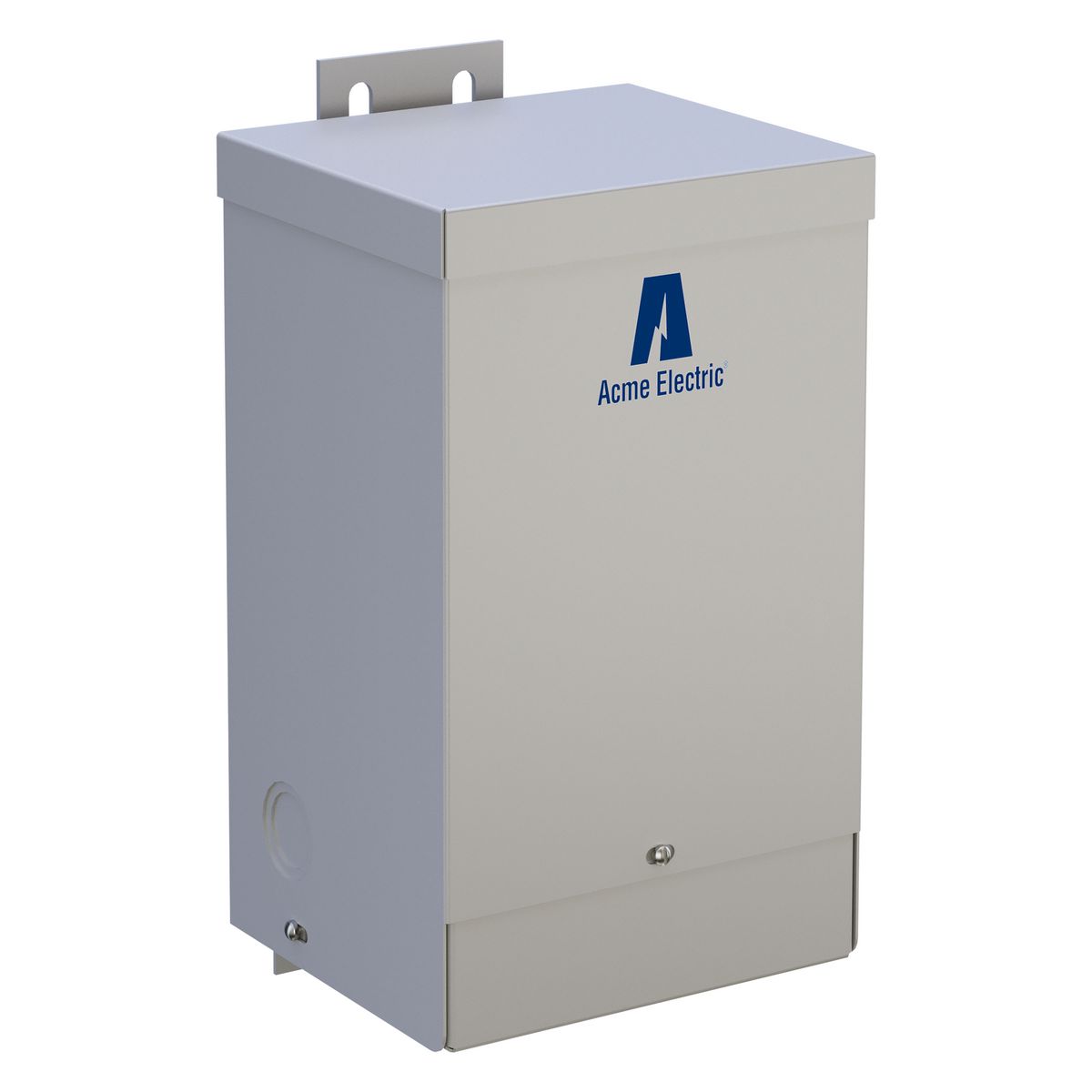

ACME T279740S Dry Distribution Transformer 1 kVA 120/208/240/277 VAC 120/240 VAC

Product Description

The ACME T279740S is a dry-type distribution transformer designed for use in both industrial and commercial settings. It has a power rating of one kilovolt-ampere and operates at a frequency of sixty hertz. The primary voltage range is 120, 208, 240, and 277 VAC, while the secondary voltage is either 120 or 240 VAC. This transformer features aluminum windings and is encapsulated to withstand various environmental conditions. The unit is housed in a NEMA 3R rated steel enclosure suitable for both indoor and outdoor installations.

• Single-phase configuration for varied applications.
• Protected against harsh conditions with encapsulated construction.
• Suitable for mounting on walls with a compact design.

Product Highlights

This transformer is ideal for providing reliable power distribution in various commercial applications. Its durable design ensures longevity and performance under demanding conditions.

Product Information

Standard Information

• Brand: ACME
• MPN: T279740S

Technical Specifications

• Power Rating: 1 kVA
• Primary Voltage: 120/208/240/277 VAC
• Secondary Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Phase: 1
• Cooling: Air Cooled/Dry
• Enclosure Type: NEMA 3R
• Mounting Type: Wall
• Dimensions: 5.5 inches L x 5.13 inches W x 10.5 inches H
• Gross Weight: 24.03 lb
• Connection Type: Lead Wire
• Winding Material: Aluminum
• Insulation Class: Class H/180°C
