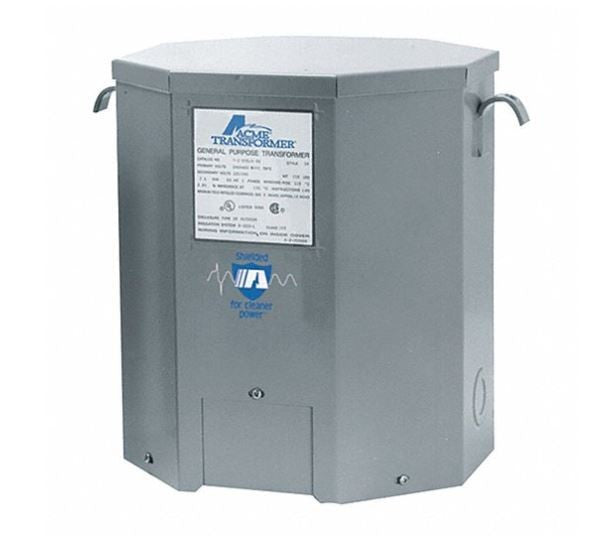

Acme T2535183S Low Voltage Distribution Transformer 25kVA

Product Description

The ACME T2535183S is a low voltage distribution transformer. This single-phase transformer operates quietly with sound levels below NEMA standards and features an electrostatic shield for enhanced protection. Designed for industrial and commercial applications, it is rated for 600 volts and below.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Ground studs for use with non-metallic conduit

Product Highlights

This transformer is designed for industrial and commercial applications. It features quiet operation and enhanced protection.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T2535183S
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T2535183S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 25
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Secondary Voltage - Winding: 120/240 V
• Taps % Steps: 2.5%
• UL Insulation Class: 180 C
• Winding Material: AL
• Frequency Rating: 60 Hz
• Primary Voltage: 240 X 480 V
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Insulation: 180 deg C
• Connection Type: Wire Lead Screw
• Enclosure Type: NEMA 3R
• Phase: 1
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 deg C
• Application: Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities
• Type: Dry
• Power Rating: 25 kVA
• Enclosure Finish: Powder Polyurethane Paint
• Enclosure Material: Steel
• IP Rating: IP14
• Includes Knockouts: Knockouts Included
• Input Voltage: 240V AC; 480V AC
• Knockout Size: 1 in; 1-1/2 in
• Output Voltage: 120V AC; 240V AC
• Overall Depth: 13.34 in
• Overall Height: 18.44 in
• Overall Width: 16.13 in
• Standards: CSA C22.2 No. 47; UL 506
• Temperature Rise: 115 C
• Voltage Function: Step Down
