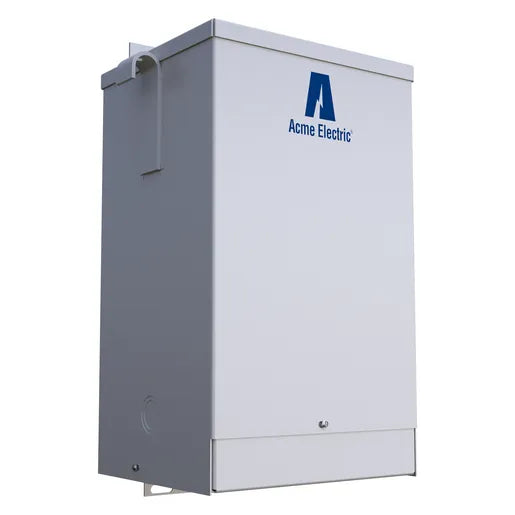

Acme T2531131S Low Voltage Distribution Transformer - Single Phase, 600 - 120/240V, 3kVA

Product Description

The ACME T2531131S is a low voltage distribution transformer with a single phase, 600 - 120V/240V, and 3kVA. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection. Ideal for general-purpose applications requiring voltage conversion.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Suitable for low voltage distribution

Product Highlights

Single-phase transformer, 600-120/240V, 3kVA, quiet operation, electrostatic shield.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T2531131S
• Country of Origin: China

Technical Specifications

• Catalog Number: T2531131S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 3
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 600
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• Taps % Steps: 5%
• UL Insulation Class: 180 0 C
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 600 V
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Phase: 1
• Temperature Rise: 115 0C
• Enclosure Rating: NEMA 3R
• Output Voltage: 120/240V AC
• Power Rating: 3 kVA
• Hz - Electrical: 60 Hz
• Winding Material - Transformer: Copper
• Standards: CSA C22.2 No. 47; UL 506
• Insulation Max. Temp.: 180 0C
