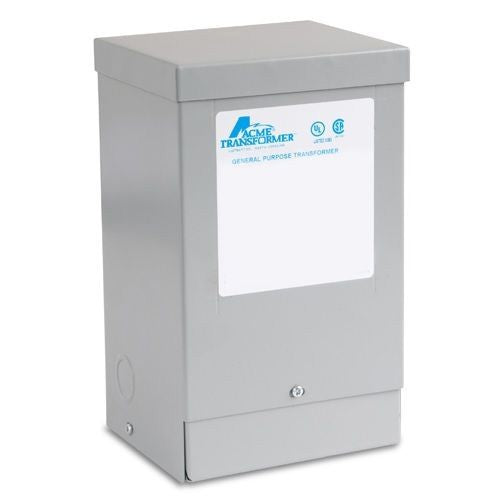

Acme T253112S General Purpose Transformer: Encapsulated Core, 2 kVA

Product Description

The ACME T253112S is a general purpose transformer with an encapsulated core and a 2 kVA rating. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection. This single-phase dry type distribution transformer is designed for low voltage distribution applications.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Ground studs for use with non-metallic conduit

Product Highlights

This transformer features an encapsulated core, electrostatic shielding, and quiet operation, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T253112S
• Country of Origin: United States

Technical Specifications

• Catalog Number: T253112S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 2
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 600
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180\nC
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 600 V AC
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Insulation: Class H/180 deg C
• Phase: 1
• Power Rating: 2 kVA
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 deg C
• Type: Dry
• Standard & Approvals: UL 506 Listed, CSA C22.2 No 47 Certified, Meet CSA C802.2 Efficiency, CE Certified, RoHS Complaint
• Connection Type: Wire Lead Screw
• Enclosure Type: NEMA 3R
