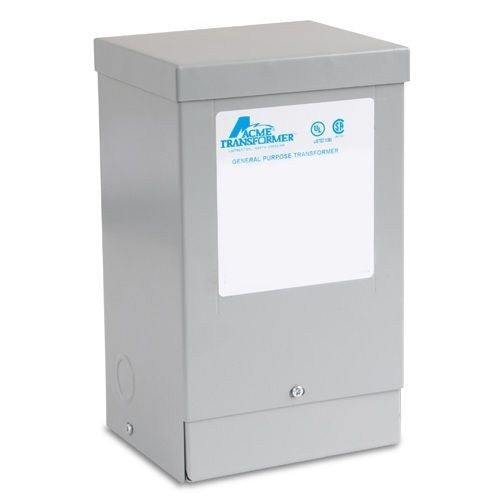

Acme T253111S Low Voltage Distribution Transformer - Single Phase, 600 - 120/240V, 1.5kVA

Product Description

The ACME T253111S is a low voltage distribution transformer with a single phase, 600 - 120V/240V, and 1.5kVA. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection. This dry type distribution transformer is encapsulated and suitable for wall mounting. It is designed with a shielded electrostatic shield.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Ground studs for use with non-metallic conduit

Product Highlights

This encapsulated core transformer is ideal for low voltage distribution and isolation, ensuring reliable power conversion.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T253111S
• Country of Origin: United States

Technical Specifications

• Catalog Number: T253111S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 1.5
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 600
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 600 V
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Volt Amps: 1.500kVA
• Phase: 1
• Brand: Acme Electric
• MPN: T253111S
• Country of Origin: United States
• Insulation: Class H/180 deg C
• Enclosure Type: NEMA 3R
• Power Rating: 1.5 kVA
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 deg C
• Connection Type: Wire Lead Screw
