Acme T2530144S Low Voltage Distribution Transformer 5kVA

Product Description

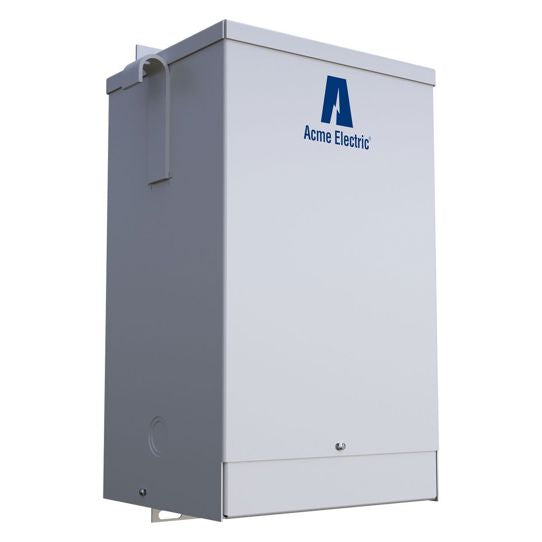

The ACME T2530144S is a low voltage distribution transformer with a single phase and a power rating of 5kVA. It is designed for quiet operation, maintaining sound levels below NEMA standards. The transformer also features an electrostatic shield for enhanced protection. It has primary voltage of 240 X 480 V and secondary voltage of 120/240 V.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• UL type 3R enclosure for indoor or outdoor service

Product Highlights

This distribution transformer is designed for low voltage applications, offering quiet operation and enhanced protection.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T2530144S
• Country of Origin: United States

Technical Specifications

• Catalog Number: T2530144S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 5
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 240 X 480 V
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Type: General Purpose Transformer
• Volts, Primary: 240x480V
• Volts, Secondary: 120/240V
• Phase: 1
• Taps: (2)+2.5pct x (2)-2.5pct
• Temperature Rise: 150 deg C
• Enclosure Rating: NEMA 3R
• Brand: Acme Electric
• Connection Type: Copper Lead Wire Screw Terminal
• Housing Material: Steel
• Insulation: 180 deg C Class H
• Number of Taps: 4
• Power Rating: 5 kVA
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 deg C
• Item Type: Distribution Transformer
• Length: 7.13
• Length UOM: Inch
• Width: 10.31
• Width UOM: Inch
• Height: 14.38
• Height UOM: Inch
• Standard: UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
