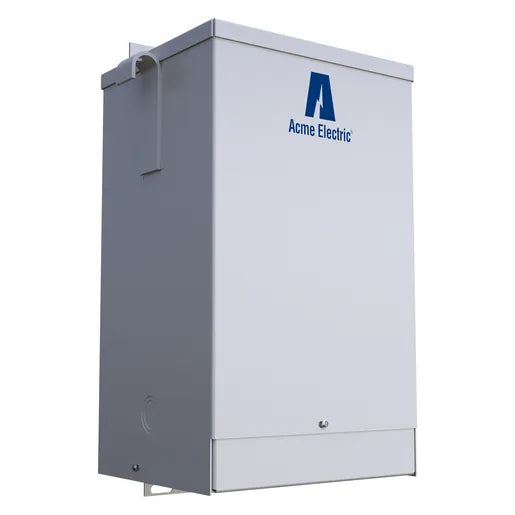

Acme T2530134S Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 3kVA

Product Description

The ACME T2530134S is a low voltage distribution transformer designed for single-phase operation with primary voltage 240X480 and secondary voltage 120/240V, 3kVA. It is designed for use in industrial and commercial applications. The transformer features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Encapsulated construction

Product Highlights

The ACME T2530134S transformer is ideal for industrial and commercial applications requiring reliable voltage transformation.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T2530134S
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T2530134S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 3
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 240 X 480 V
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Connection Type: Wire Lead Screw Terminal
• Enclosure: NEMA 3R Steel
• Insulation Material: 180 DEG C Class H
• Max Temperature: 115 degrees C
• Number of Phases: 1 Phase
• Secondary Voltage: 120/240 VAC
• Standard: C22.2 No. 47,UL 506
• Temperature Rating: 115 degrees C
• Brand: Acme Electric Corporation
• Sub Brand: Acme
• Product Category: Dry Type Distribution Transformer
• Configuration: Encapsulated
• Manufacturer Part Number: T2530134S
• Phase: 1 Phase
• Power Rating: 3 kVA
• Primary Type: Industrial Transformer
• Series: International Series
• Type: Distribution Transformer
• Frequency: 60 Hz
