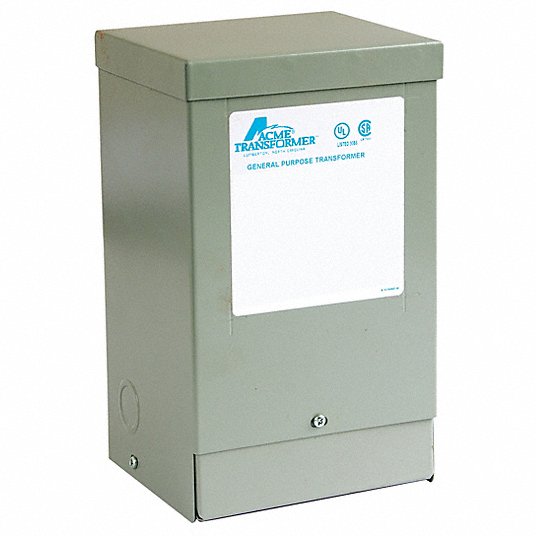

Acme T253008S Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 0.5kVA

Product Description

The ACME T253008S is a low voltage distribution transformer designed for industrial and commercial applications. This single-phase transformer operates quietly, maintaining sound levels below NEMA standards. It features an electrostatic shield for enhanced protection. Encapsulated within a NEMA 3R enclosure, it's rated for 600 volts and below.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities

Product Highlights

Designed for industrial and commercial applications, this transformer ensures reliable power distribution with enhanced protection.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T253008S
• Country of Origin: MX

Technical Specifications

• Catalog Number: T253008S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 0.5
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 240 X 480
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 155 C
• Winding Material: Copper
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240/480 V AC
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Manufacturer Part Number: T253008S
• Manufacturer: Acme Electric Corporation
• Series: International Series
• Needed Voltage: 120 VAC, 240 VAC
• Secondary Voltage: 120/240 V AC
• Primary Type: Industrial Transformer
• Power Rating: 0.5 kVA
• Phase: 1
• Available Voltage: 240 VAC, 480 VAC
• Frequency: 50/60 Hz
• Type: Distribution Transformer
• Configuration: Encapsulated
• Brand: Acme Electric
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure Type: NEMA 3R
• Insulation: 155 deg C
• Maximum Amperage Rating: 1.7/3.5/7 A
• Temperature Rating: 115 deg C
• Enclosure Finish: Powder Polyurethane Paint
• Enclosure Material: Steel
• IP Rating: IP14
• Includes Knockouts: Knockouts Included
• Input Voltage: 240V AC; 480V AC
• Knockout Size: 1/2 in; 3/4 in
• Mounting Location: Wall
• NEMA Enclosure Rating: 3R
• Output Voltage: 120V AC; 240V AC
• Overall Depth: 4.2 in
• Overall Height: 9.06 in
• Overall Width: 4.37 in
• Standards: CSA C22.2 No. 47; UL 506
• Temperature Rise: 115 C
• Voltage Function: Step Down
• Volt Amps: 500
