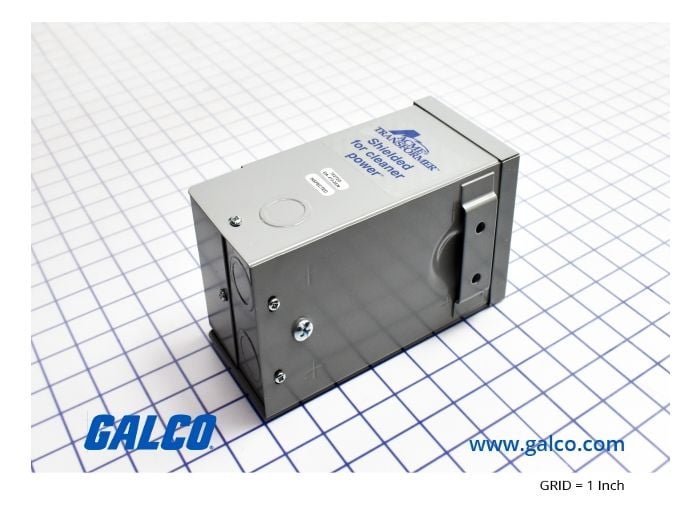

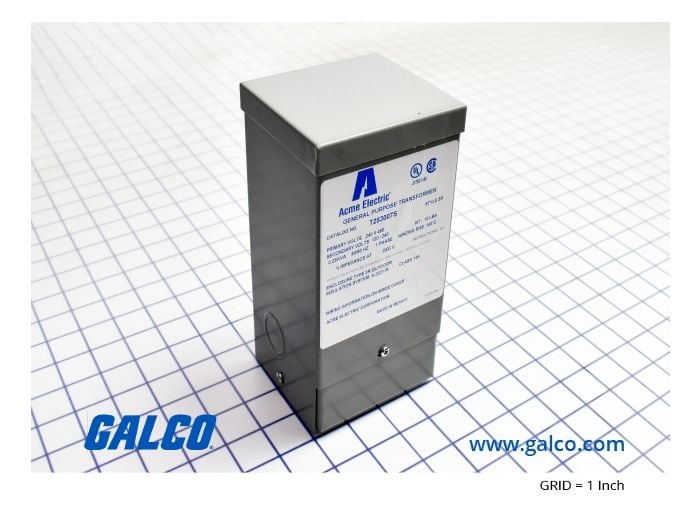

ACME T253007S Low Voltage Distribution Transformer - Single Phase, 240X480 to 120/240V, 0.25kVA

Product Description

The ACME T253007S is a single-phase, dry-type distribution transformer with a rating of 0.25kVA. This transformer is designed for general usage, converting primary voltages of 240 volts or 480 volts to secondary voltages of 120 volts or 240 volts. It features a NEMA 3R enclosure, providing protection against various environmental conditions. The transformer also includes an electrostatic shield for additional safety.

• Single-phase transformer
• NEMA 3R enclosure
• Electrostatic shield for enhanced protection

Product Highlights

Product Information

Standard Information

• Manufacturer: ACME
• MPN: T253007S

Technical Specifications

• Type: Distribution
• VA Rating: 250 VA
• KVA: 0.25 KVA
• Primary Voltage: 240 V, 480 V
• Secondary Voltage: 120 V, 240 V
• Phase: 1
• Enclosed: Yes
• NEMA Rating: NEMA 3R
• Insulation Class: Class F
• Temperature Rise: 150 degrees C
• Frequency Rating: 60 Hz
• Winding: Aluminum
• Construction: Epoxy potted
• Enclosure Dimensions: 8.86 x 4.08 x 3.88 inches
• Approvals: CSA, UL
• Net Weight: 10 lbs
• Gross Weight: 11 lbs
